BodyHard top

HARD TOP

Service repair no - 76.61.01

Remove

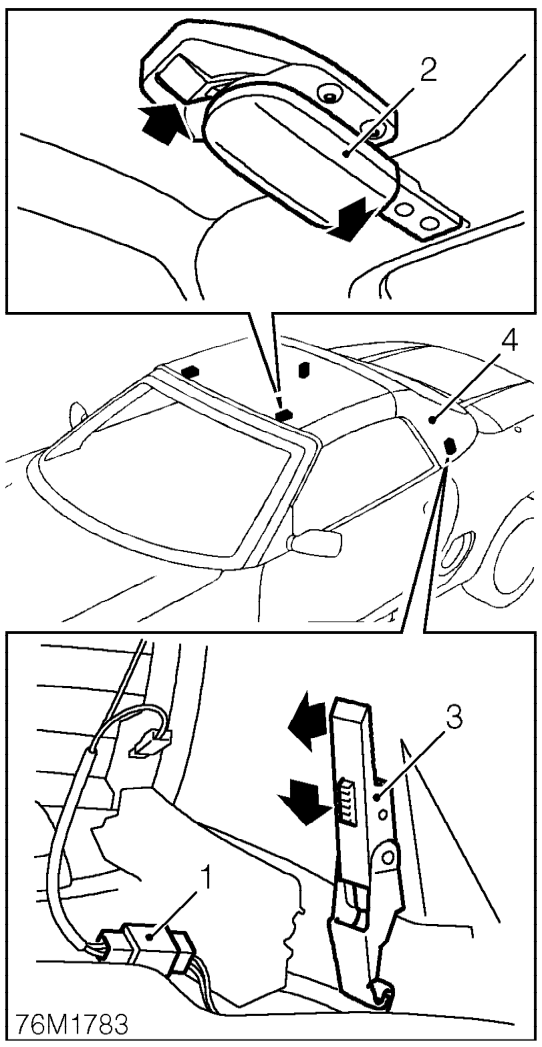

Hard top – Service repair no - 76.61.01
  1. Disconnect multiplug from heated rear window.
  2. Release 2 catches securing hard top to header rail.
  3. Release 2 catches securing hard top to hood mounting brackets.
  4. With assistance, remove hard top from vehicle.

Refit

NOTE: Ensure side catches are in the raised position before fitting the hard top to the vehicle.

  1. With assistance, position hard top to vehicle.
  2. Secure hard top to header rail with catches.
  3. If necessary, release clips and adjust catches.
  4. Secure hard top to hood mounting brackets.
  5. Adjust catches if required.
  6. Connect screen heater multiplug.
