Door Glass

Door Glass

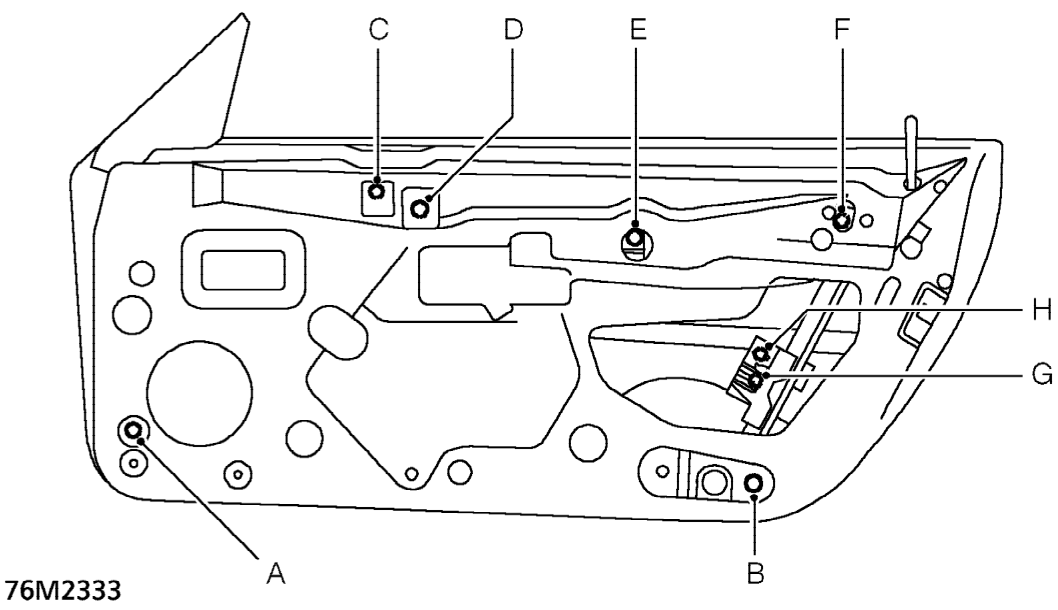

A: Glass deflection adjustment (pivoting at waist rail). B: Glass deflection adjustment (pivoting at waist rail). C: Glass height adjustment (this is also the glass stop). D: Glass lateral and vertical adjustment. E: Glass lateral and vertical adjustment. F: Glass height adjustment (this is also the glass stop). G: Used at beginning of adjustment to position the door glass centrally in waist rail slot. Tighten bolt to 7 Nm. H: Positioned at rear glass rail at final stage of adjustment and tightened to 7 Nm.

NOTE: All glass adjustments must be done before the upstroke of the glass.
