BodyHard top seal

HARD TOP SEAL

Service repair no - 76.61.34

Remove

  1. Remove hard top. See this section.
  2. Invert hard top on a soft covered work surface.
  3. Release seal from adhesive at header and below backlight.

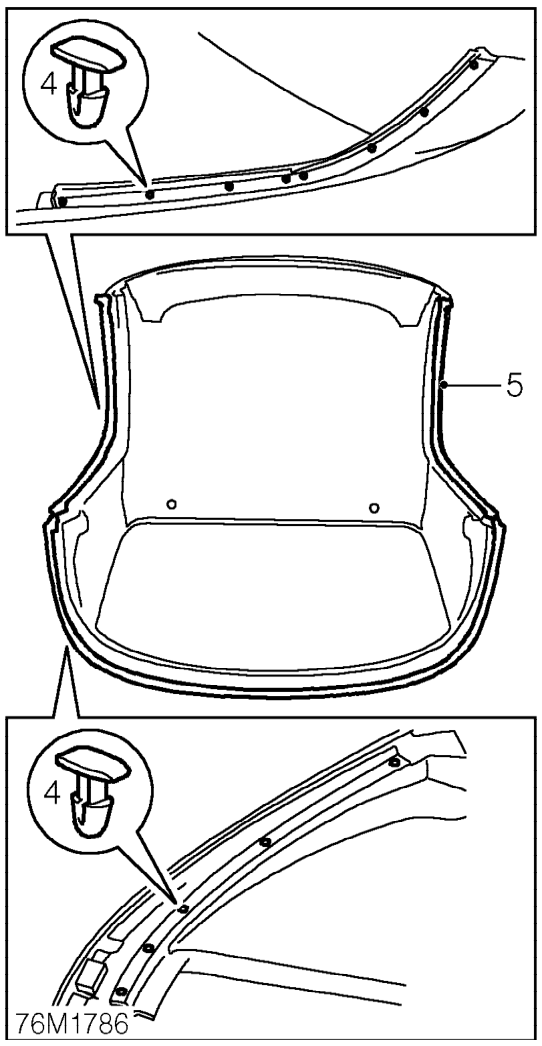

Hard top seal – Release seal from adhesive at header and below backlight.
  1. Release 26 studs securing seal to hard top.
  2. Remove seal.

Refit

  1. Remove all traces of dirt and grease from surfaces to be bonded using a suitable mild solvent.
  2. Apply Loctite 401 to hard top using old deposits as a guide.
  3. Position seal, centralise and carefully bond to hard top.
  4. Engage studs securing seal to hard top.
  5. Fit hard top. See this section.
