Refer to the Owner’s Handbook for information on the airbag system.

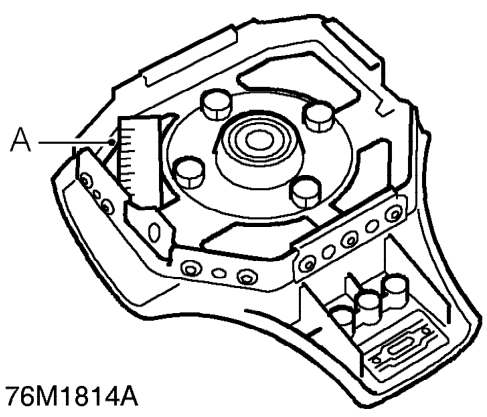

Airbag module - driver

A - MG Rover Part Number / Bar Code - The code number must be quoted when ordering a replacement module.

An ’SRS AIRBAG’ legend is also moulded into the centre pad to identify the presence of a driver’s airbag.

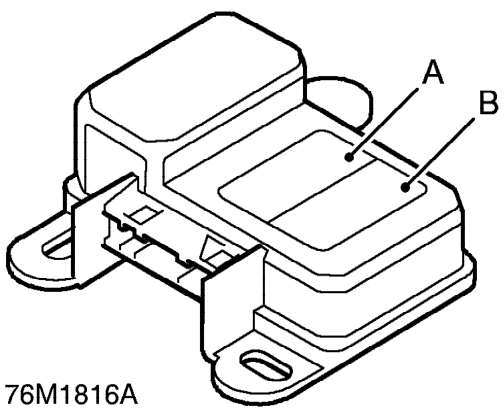

Diagnostic Control Unit

A - Refer to the Workshop Manual for information on the airbag system.

B - MG Rover Part Number / Bar Code - The code number must be recorded if the airbag control and diagnostic unit is to be replaced.

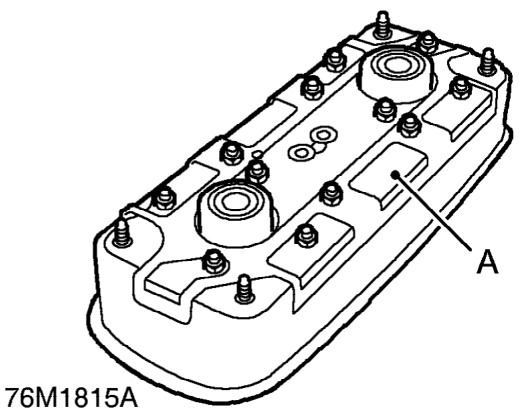

Airbag module - passenger

A - MG Rover Part Number / Bar code - The code number must be quoted when ordering a replacement module.

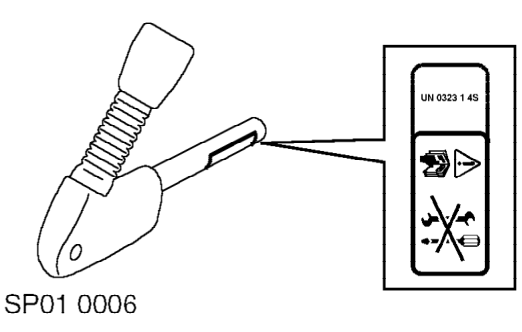

Front seat belt pre-tensioners

• Exercise caution.
• Refer to the publication where the procedures, instructions and advice can be found (usually Workshop Manual or Owner’s Handbook) for working on the SRS system.
• Do not attempt to repair or disassemble.

Bar codes

Bar codes are fitted to SRS components and other components which are critically related to SRS operation. The code number(s) must be recorded if the component is to be replaced.
