SRS component testing precautions

SRS component testing precautions

The SRS components are triggered using relatively low operating currents, always adhere to the following precautions:

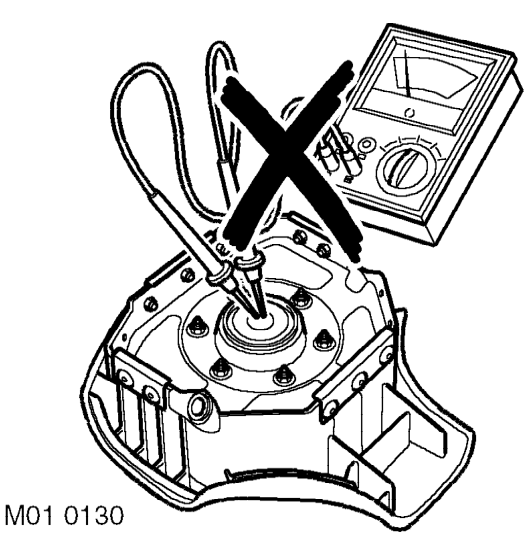

WARNING: Do not use a multimeter or other general purpose test equipment on SRS system components or accidental deployment may occur. Only use ’Testbook’ to diagnose SRS system faults.

WARNING: Do not use electrical test equipment on the SRS harness while it is connected to any of the SRS system components. It may cause accidental deployment and personal injury.

Handling and storage

There are regulations for the safe storage of SRS components which must be observed, consult your local authority for details.

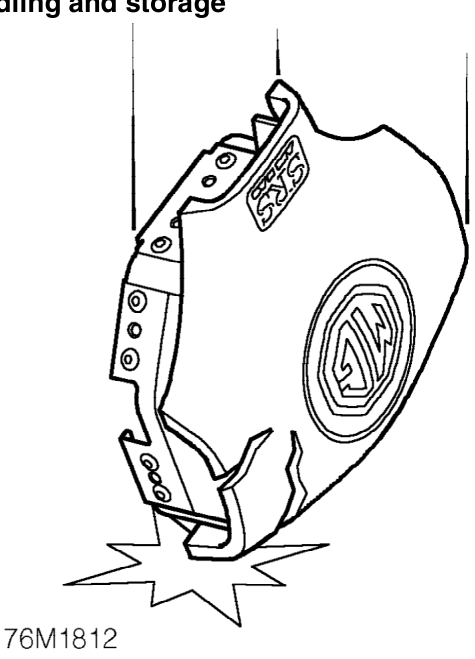

WARNING: The SRS components are sensitive and potentially hazardous if not handled correctly; always comply with the following handling precautions: • Never drop a SRS component. The airbag diagnostic control unit is a particularly shock sensitive device and must be handled with extreme care. Airbag modules could deploy if subjected to a strong shock. • Never wrap your arms around an airbag module. If an airbag module has to be carried, hold it by the cover, with the cover uppermost and the base away from your body. • Never transport airbag modules in the cabin of a vehicle. Always use the luggage compartment of the vehicle for carrying airbag modules.

WARNING: Never attach anything to an airbag cover or any trim component covering an airbag module. Do not allow anything to rest on top of an airbag module.

WARNING: Always keep components cool, dry and free from contamination.
