Warning labels

WARNING LABELS

Warning symbols relating to the SRS system are displayed at various positions in the vehicle. SRS components have additional warning labels displayed on them to indicate that particular care is needed when handling them. These include airbag modules, DCU and the rotary coupler.

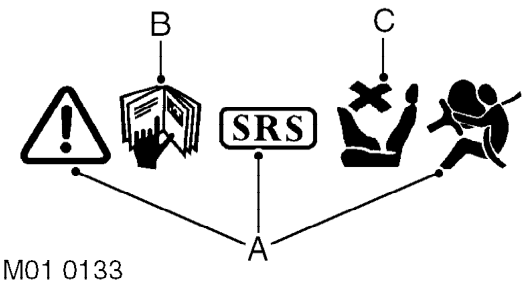

The following warning labels may be displayed together or individually at various locations on the vehicle:

A - The need for caution when working in close proximity to SRS components.

B - Refer to the publication where the procedures, instructions and advice can be found (usually Workshop Manual or Owner’s Handbook) for working on the SRS system.

C - Do not use rear facing child seats in the front passenger seat if the vehicle is fitted with a passenger airbag.

WARNING: It is imperative that before any work is undertaken on the SRS system the appropriate information is read thoroughly.

NOTE: The following list indicates current locations for warning labels. Exact positions may vary dependent on legislation and market trends.

Bonnet locking platform

Refer to the Owner’s Handbook for information on the airbag system

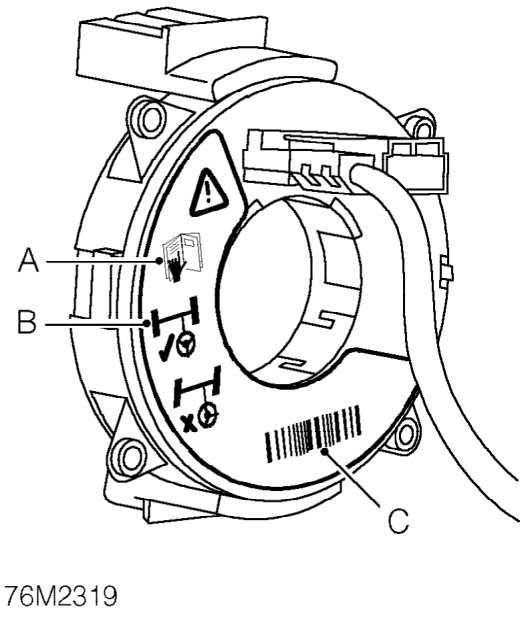

Rotary Coupler

A - SRS - Refer to the Workshop Manual for detailed instructions.

B - Ensure wheels are in the straight ahead position before removal and refitting of the rotary coupler.

C - MG Rover Part number/Bar code: the code number must be recorded if the rotary coupler is to be replaced.

CAUTION: DO NOT ROTATE THE ROTARY COUPLER MECHANISM
