SRS component testing precautions (page 2 of 2)

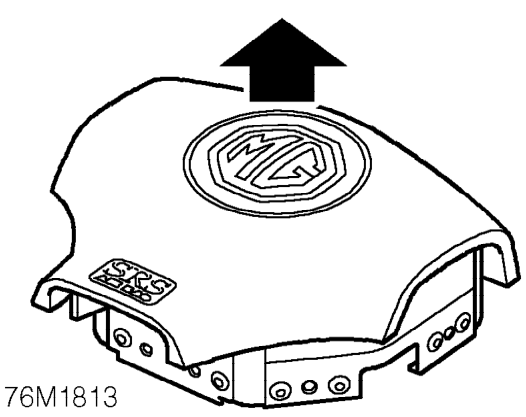

WARNING: Store airbag modules with the deployment side uppermost. If airbag modules are stored deployment side down, accidental deployment will propel the airbag module with enough force to cause serious injury.

WARNING: Airbag modules are classed as explosive devices. For overnight and longer term storage, they must me stored in a secure steel cabinet which has been approved as suitable for the purpose and has been registered by the local authority.

WARNING: Store the airbag module in a designated storage area. If there is no designated storage area available, store in the locked luggage compartment/loadspace of the the vehicle and inform the workshop supervisor.

CAUTION: Improper handling or storage can internally damage the airbag module, making it inoperative. If you suspect the airbag module has been damaged, install a new module and refer to the Deployment/Disposal Procedures to determine the correct method for disposal of the damaged module.

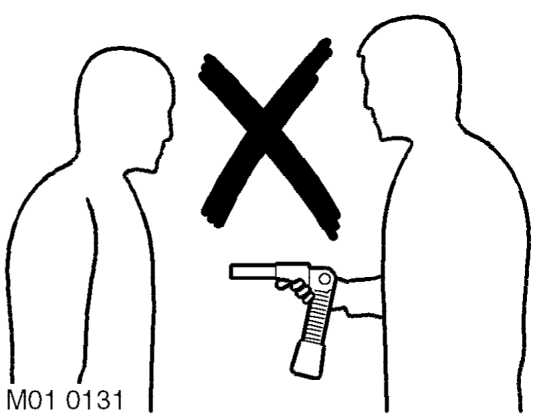

WARNING: When handling front seat belt buckle pre-tensioners, hold by the piston tube, with the open end of the piston tube pointing towards the ground and the buckle facing away from your body. • DO NOT cover the end of the piston tube. • DO NOT hold buckle pre-tensioners by the bracket assembly or steel cable. • NEVER point the piston tube towards your body or other people.
