Refit

  1. Position instrument pack to fascia and connect multiplugs.
  2. Position instrument pack and secure with screws.
  3. Fit instrument cowl. See this section.

INSTRUMENT COWL

Service repair no - 88.20.02

Remove

  1. Remove steering column nacelle. See STEERING, Repairs.

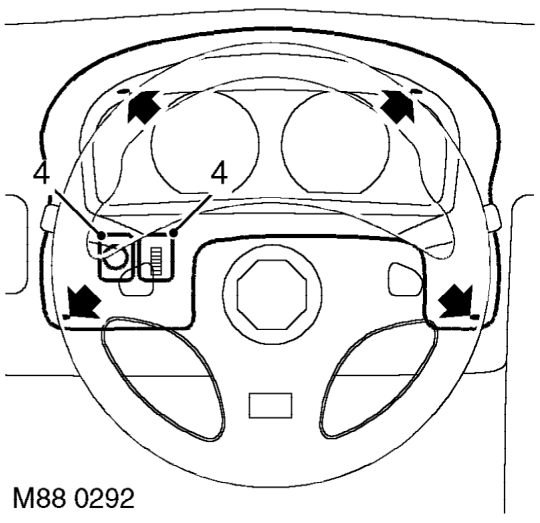

Instrument cowl – Remove steering column nacelle. See STEERING, Repairs.
  1. Remove 4 screws securing instrument cowl to fascia.
  2. Release cowl from fascia.
  3. Disconnect multiplugs from dimmer resistor and door mirror selector switch.
  4. Remove cowl.
  5. Remove dimmer and mirror switch from cowl.

Refit

  1. Fit dimmer and mirror switch to cowl.
  2. Position cowl and connect multiplugs.
  3. Position cowl to fascia and secure with screws.
  4. Fit steering column nacelle. See STEERING, Repairs.
