InstrumentsInstrument pack window

INSTRUMENT PACK WINDOW

Service repair no - 88.20.06

Remove

  1. Remove instrument illumination housing. See this section.

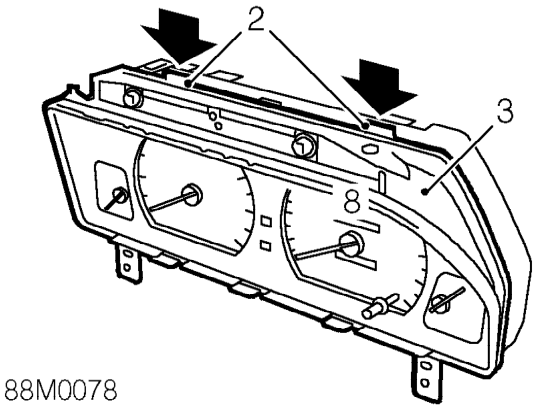

Instrument pack window – Remove instrument illumination housing. See this section.
  1. Release 4 clips securing panel window to instruments.
  2. Remove instrument pack window.

Refit

  1. Fit pack window and secure with clips.
  2. Fit instrument illumination housing. See this section.

INSTRUMENT ILLUMINATION HOUSING

Service repair no - 88.20.07

Remove

  1. Remove instrument pack. See this section.

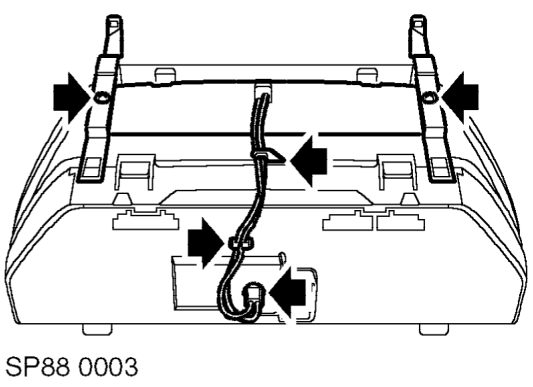

Instrument illumination housing – Remove instrument pack. See this section.
  1. Remove 2 screws securing brackets to instrument pack and collect brackets.
  2. Release bulb holder from casing and cables from 2 casing clips.
  3. Remove instrument illumination housing.

Refit

  1. Position illumination housing to casing.
  2. Fit brackets and secure with screws.
  3. Secure bulb holder and secure cables to clips.
  4. Fit instrument pack. See this section.
