SPEEDOMETER

Service repair no - 88.30.01

Remove

  1. Remove tachometer. See this section.

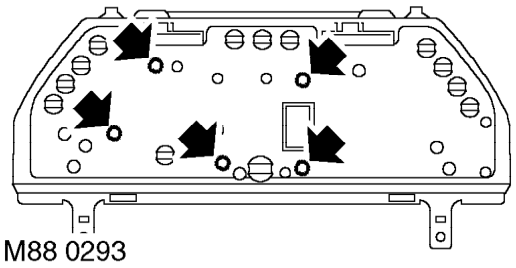

Speedometer – Remove tachometer. See this section.
  1. Remove 5 screws securing speedometer to casing.
  2. Remove speedometer.

Refit

  1. Fit speedometer to instrument pack and secure with screws.
  2. Fit tachometer. See this section.

TACHOMETER

Service repair no - 88.30.21

Remove

  1. Remove instrument pack window. See this section.

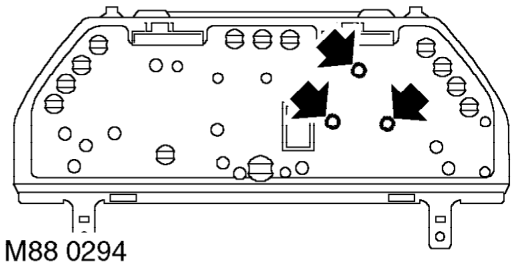

Tachometer – Remove instrument pack window. See this section.
  1. Remove 3 screws securing tachometer to casing.
  2. Remove tachometer .

Refit

  1. Fit tachometer to instrument pack and secure with screws.
  2. Fit instrument pack window. See this section.
