PRINTED CIRCUIT BOARD

Service repair no - 88.20.19

Remove

  1. Remove instrument pack. See this section.

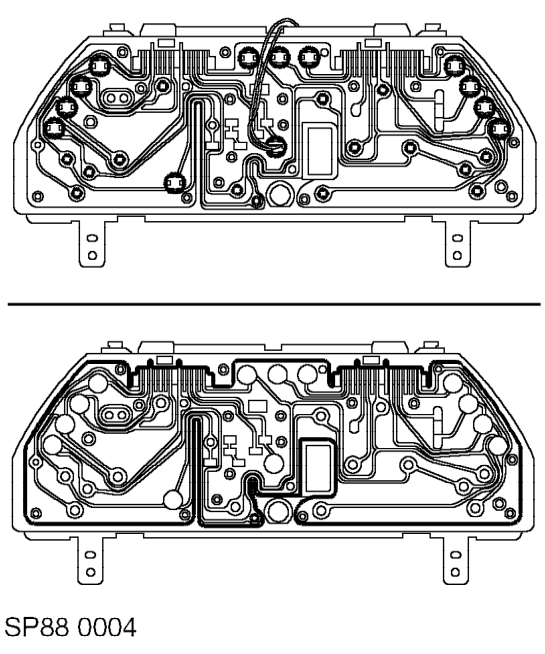

Printed circuit board – Remove instrument pack. See this section.
  1. Noting their fitted positions remove 12 bulbs from PCB.
  2. Remove 14 screws securing PCB to casing.
  3. Release PCB from 14 lugs and remove PCB.

Refit

  1. Position PCB and engage lugs.
  2. Secure PCB with screws.
  3. Fit bulbs.
  4. Fit instrument pack. See this section.

OIL TEMPERATURE GAUGE

Service repair no - 88.25.02

Remove

  1. Remove centre console panel. See BODY, Interior trim components.

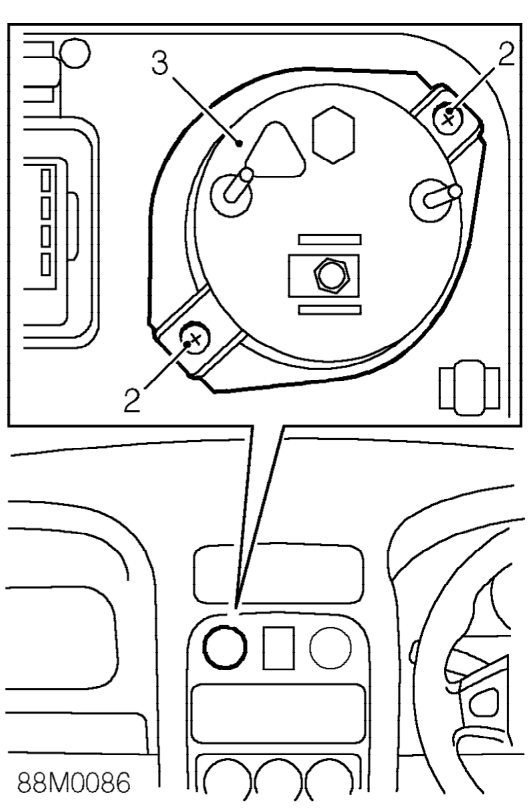

Oil temperature gauge – Remove centre console panel. See BODY, Interior trim components.
  1. Remove 2 screws securing gauge to console.
  2. Remove retaining bracket, gauge and ’O’ ring.

Refit

  1. Position ’O’ ring and gauge to console.
  2. Fit retaining bracket and secure with screws.

NOTE: Ensure correct orientation of gauge in console.

  1. Fit centre console panel. See BODY, Interior trim components.
