MG TF Factory Workshop Manual (2002-2005)18 · Body
18 · Body & interior

Centre console panel

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Interior trim components › Centre console panel
BodyCentre console panel · page 1 of 2

Refit

  1. Position gaiter.

2. Stepspeed (Em-CVT) models: Fit gearshift selector indicator and secure with screws.

  1. Connect multiplug to selector indicator.

4. All models: Secure gaiter to centre console.

  1. Fit gear change selector knob.

CENTRE CONSOLE PANEL

Service repair no - 76.25.23

Remove

  1. Disconnect battery earth lead.
  2. Remove radio. See ELECTRICAL, Repairs.
  3. Remove gear lever gaiter. See this section.

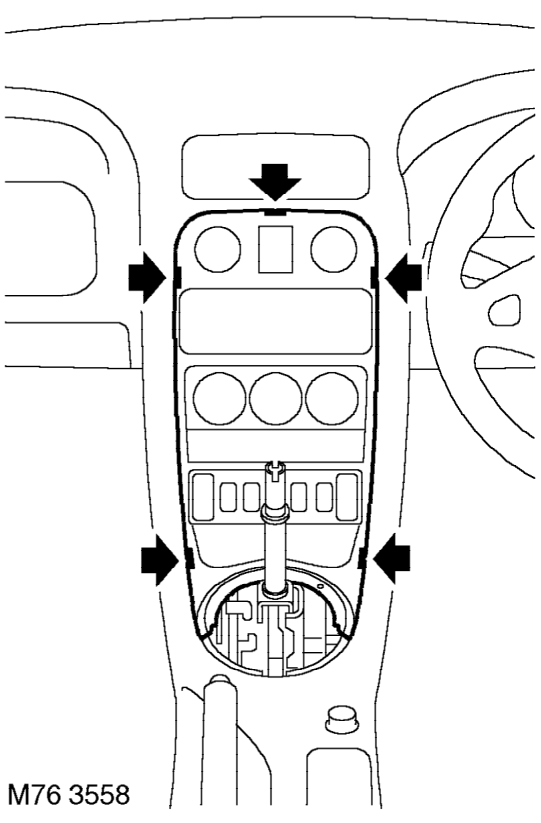

Centre console panel – Remove gear lever gaiter. See this section.
  1. Release 5 clips securing console to fascia.
