Gear lever gaiter

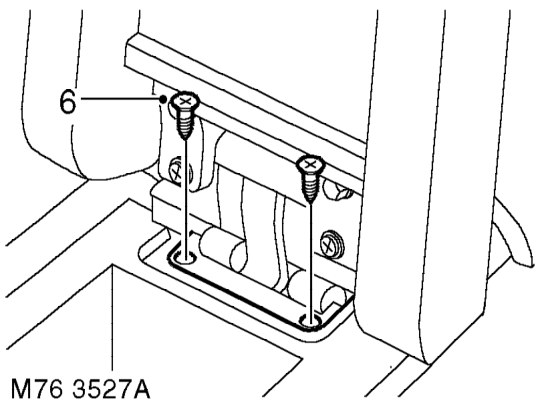

6. Remove 2 screws securing console lid bracket to front console and remove console lid assembly.
7. Remove rear console.
8. Remove 2 screws securing volumetric sensor to rear console and remove sensor.

Refit

1. Fit sensor to console and secure with screws.
2. Fit rear console to bulkhead and secure with 2 upper screws. Ensure correct position of cable.
3. Fit console lid assembly and secure with screws.
4. Fit front console storage bin.
5. Connect multiplug to sensor.
6. Fit rear bulkhead finisher. See this section.

GEAR LEVER GAITER

Service repair no - 76.25.06

Remove

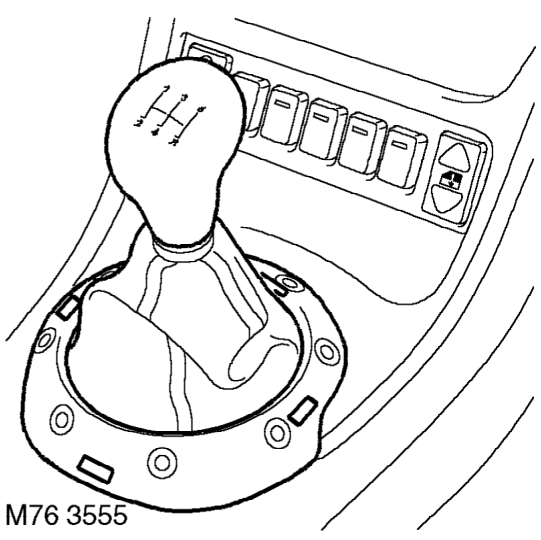

1. Manual models: Unscrew and remove gear knob. 2. Stepspeed (Em-CVT) models: Select position ’D’, pull gear selector lever sharply upwards and remove. 3. All models: Release gaiter from centre console.

4. Stepspeed (Em-CVT) models: Disconnect gearshift selector indicator multiplug.

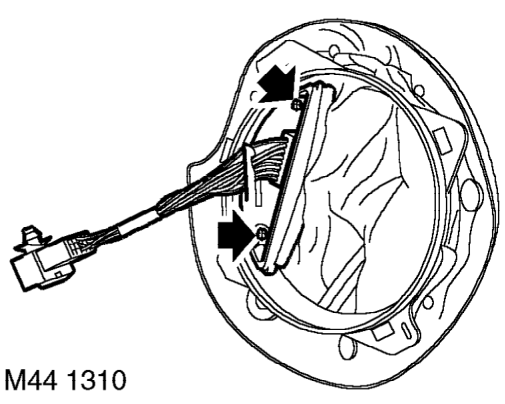

5. Remove 2 screws securing gearshift selector indicator and remove selector indicator.

6. All models: Remove gaiter.
