GLOVEBOX LATCH

Service repair no - 76.52.08

Remove

  1. Open glovebox lid.

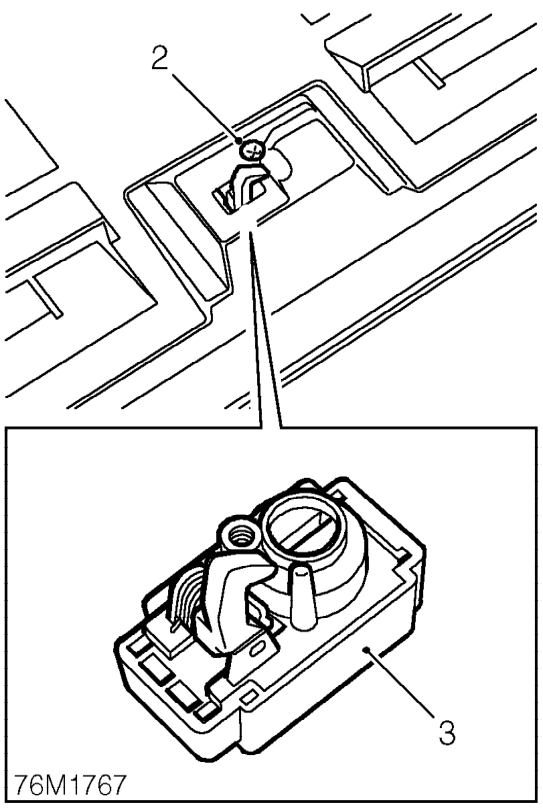

Glovebox latch – Open glovebox lid.
  1. Remove screw securing latch to glovebox lid.
  2. Remove latch.

Refit

  1. Position latch to glovebox lid and secure with screw.
  2. Close glovebox lid.

HOODWELL TRIM

Service repair no - 76.67.06

Remove

  1. Lower both windows.
  2. Release hood catches, do not lower hood.

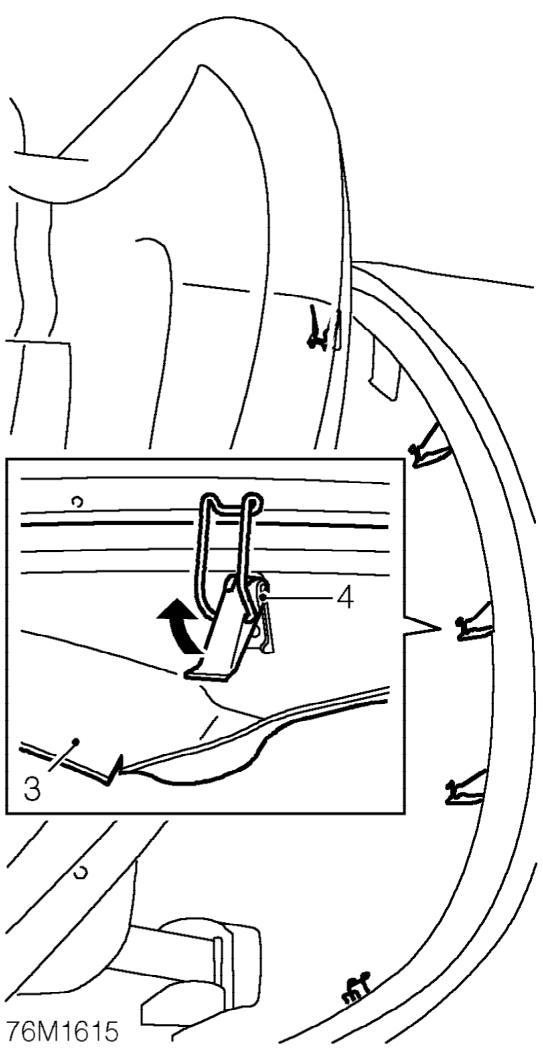

Hoodwell trim – Release hood catches, do not lower hood.
  1. Release rear edge of hoodwell trim to reveal 5 clips.
  2. Release clips securing rear of hood to body.
  3. Raise rear edge of hood.
  4. Remove hoodwell trim.
