SEAT

Service repair no - 78.10.44/99

Remove

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.

WARNING: Always remove the ignition key from the ignition switch, disconnect the vehicle battery and wait 10 minutes before commencing work on the SRS system.

  1. Lift seat adjuster, move seat rearwards.

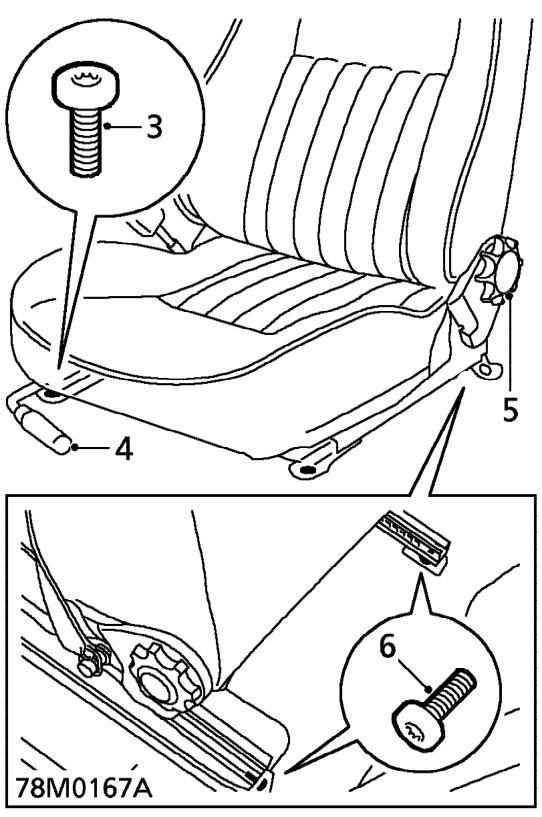

Seat – Lift seat adjuster, move seat rearwards.
  1. Remove Torx screw from front of each seat runner.
  2. Lift seat adjuster, move seat forwards.
  3. Rotate recline handle to tilt squab fully forward.
  4. Remove Torx screw from rear of each seat runner.

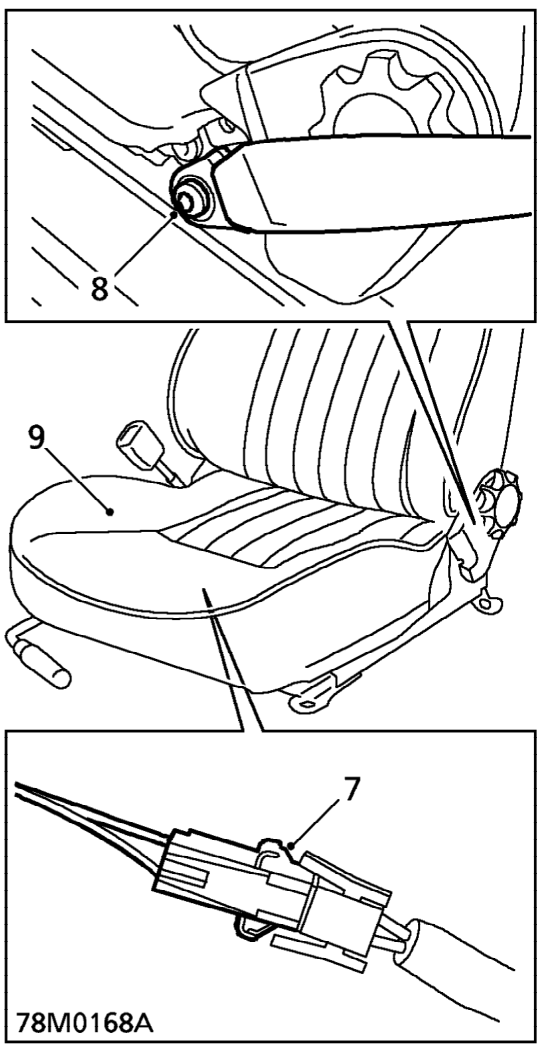

Seat – Remove Torx screw from rear of each seat runner.
  1. Disconnect seat belt pre-tensioner multiplug.
  2. Position seat and remove Torx screw securing seat belt strap to seat frame.
  3. Remove seat.
