MG TF Factory Workshop Manual (2002-2005)18 · Body
18 · Body & interior

Cover - squab - front seat

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Interior trim components › Cover - squab - front seat
BodyCover - squab - front seat · page 1 of 2

COVER - SQUAB - FRONT SEAT

Service repair no - 78.90.08

Remove

  1. Make SRS system safe. See GENERAL INFORMATION, SRS Precautions.

WARNING: Always remove the ignition key from the ignition switch, disconnect the vehicle battery and wait 10 minutes before commencing work on the SRS system.

  1. Remove seat squab assembly. See this section.
Cover - squab - front seat – Remove seat squab assembly. See this section.

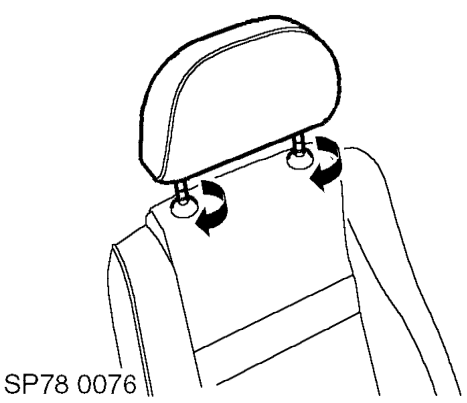

  1. Rotate inboard head restraint guide cap 90° and remove head restraint.
Cover - squab - front seat – Rotate inboard head restraint guide cap 90° and remove head restraint.

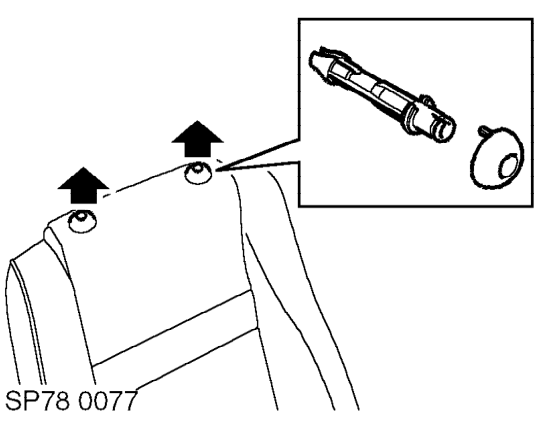

  1. Remove head restraint guide tube caps.
Cover - squab - front seat – Remove head restraint guide tube caps.

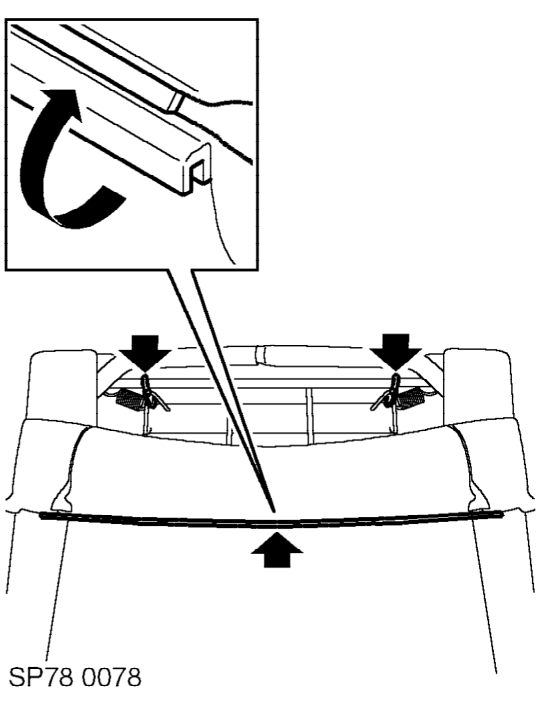

  1. Release squab cover lower retainer.
  2. Release seat membrane from bottom of seat frame.

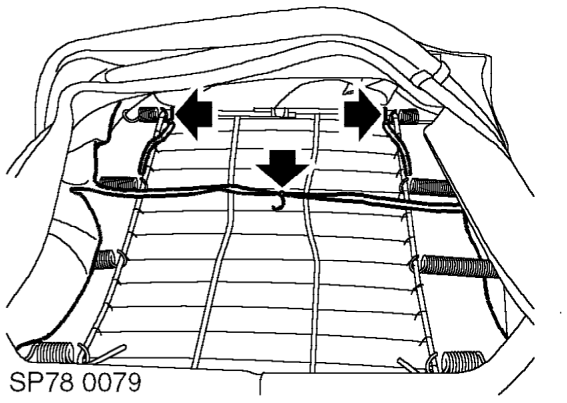

  3. Noting the fitted position, release shock cords from pullmaflex and seat frame.
Cover - squab - front seat – Noting the fitted position, release shock cords from pullmaflex and seat frame.
  1. Raise squab cover to access other end of shock cords.
  2. Noting the fitted position, release shock cords from pullmaflex.
