Cover - squab - front seat (page 2 of 2)

10. Untie and release seat membrane.

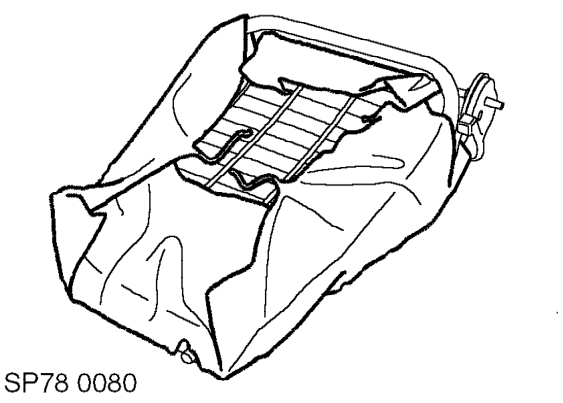

11. Remove squab frame from squab pad.
12. Remove seat membrane.

NOTE: Do not carry out further dismantling if component is removed for access only.

13. Release squab cover from squab pad to access hog rings.

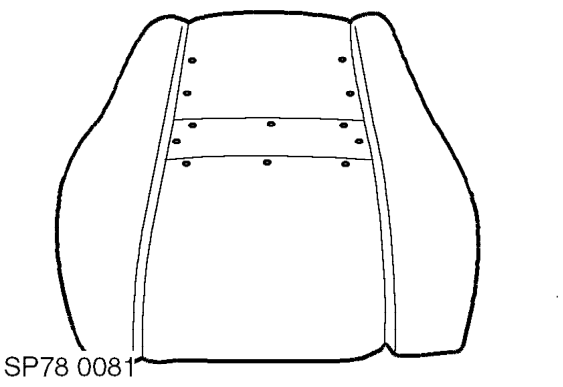

14. Noting the fitted position, remove and discard 12 hog rings.

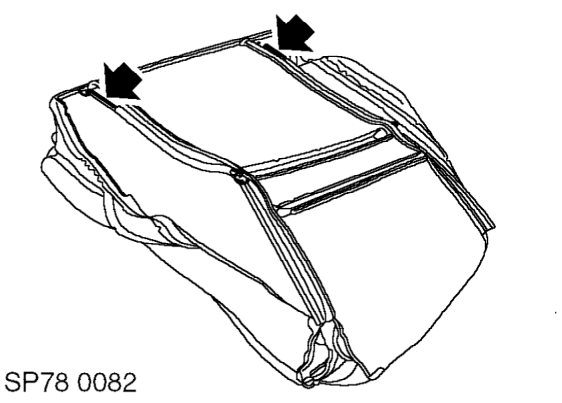

15. Remove squab cover from squab pad.

16. Remove shock cords from squab cover.

Refit

1. Position shock cords to squab cover.
2. Position squab cover to squab pad and secure with new hog rings using 78 R002 .
3. Align squab cover to squab pad.
4. Position seat membrane.
5. Fit squab cover and pad to frame.
6. Secure seat membrane to squab frame.
7. Align shock cords and secure to pullmaflex frame.
8. Align squab cover to seat frame.
9. Align shock cords and secure to pullmaflex frame.
10. Align seat membrane to bottom of squab frame.
11. Secure squab cover lower retainer.
12. Fit head restraint guide tube caps.
13. Fit head restraint.
14. Fit seat squab assembly. See this section.
15. Carry out system check by turning the ignition on and checking the SRS warning light illuminates for 4 seconds and then extinguishes.
