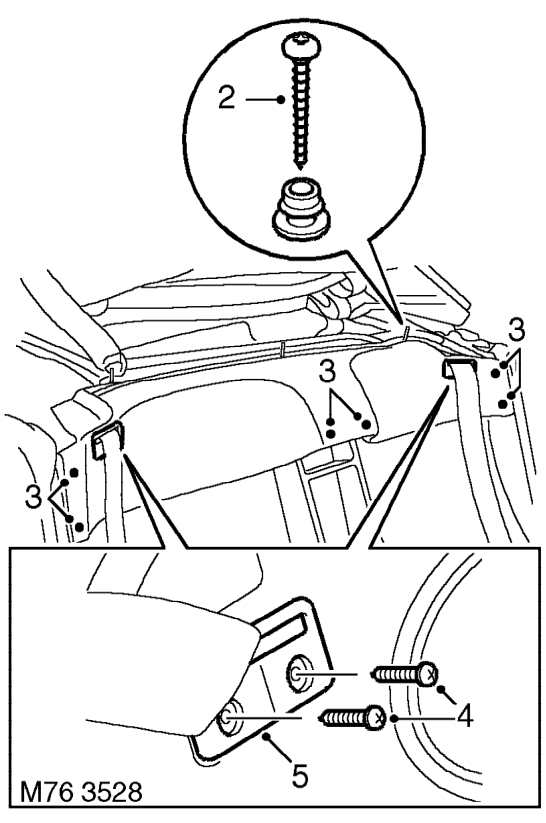

Rear bulkhead finisher

REAR BULKHEAD FINISHER

Service repair no - 76.13.49

Remove

1. Remove front seats. See this section.

2. Remove 3 screws securing finisher and collect press studs.
3. Release finisher from fixings.
4. Remove 4 screws securing belt guides to finisher.
5. Release belt guides from finisher and remove from belt.
6. Slide seat belts through finisher and remove finisher from vehicle.

Refit

1. Position finisher and thread seat belts into position.
2. Fit seat belt guides and locate guides into position.
3. Secure guides with screws.
4. Align finisher to studs and secure into position.
5. Position press studs and secure with screws.
6. Fit front seats. See this section.

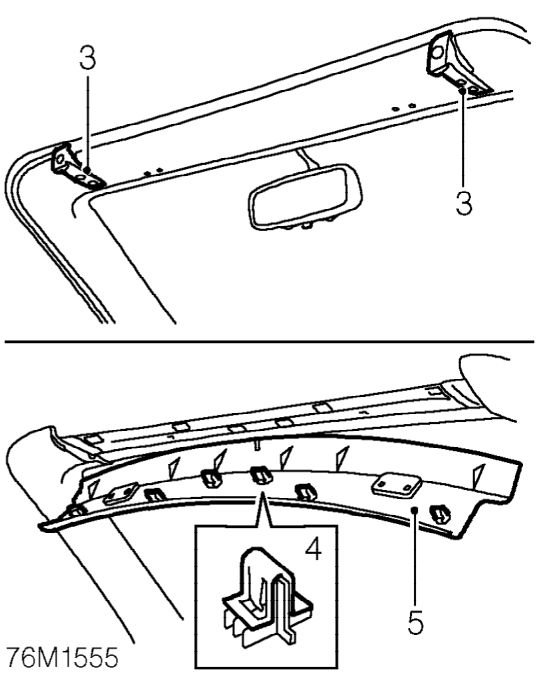

HEADER TRIM

Service repair no - 76.13.69

Remove

1. Remove both sun visors. See this section.
2. Release catches and lower hood.

3. Remove 2 Tx30 Torx screws securing each hood striker and remove strikers.
4. Release 6 sprag clips securing trim to header rail.
5. Remove trim.

Refit

1. Position trim and engage sprag clips.
2. Fit hood strikers and tighten screws to 6 Nm.
3. Fit sun visors. See this section.
4. Raise hood and secure catches.
