Cover - one piece - front seat cushion

COVER - ONE PIECE - FRONT SEAT CUSHION

Service repair no - 78.30.01

Remove

1. Make SRS system safe. See GENERAL INFORMATION, SRS Precautions.

WARNING: Always remove the ignition key from the ignition switch, disconnect the vehicle battery and wait 10 minutes before commencing work on the SRS system.

2. Remove seat squab assembly. See this section.

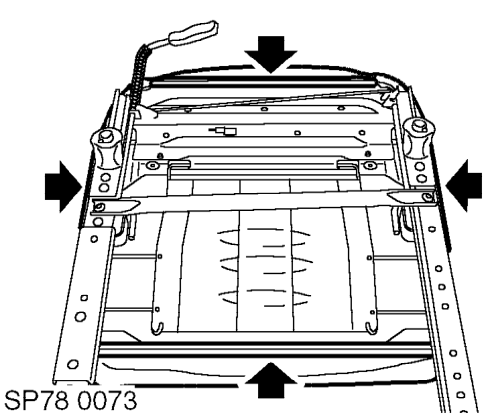

3. Release 2 retainers securing sides of cushion cover to seat frame.
4. Release retainer securing rear of cushion cover to seat frame.
5. Release retainer securing front of cushion cover to seat frame.

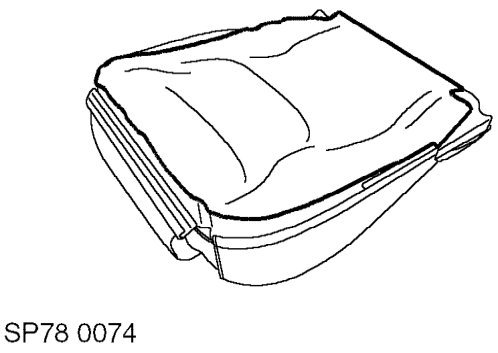

6. Release cushion cover from seat frame and remove cushion assembly.

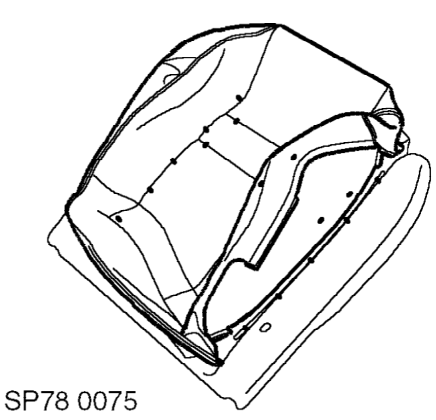

7. Remove seat membrane.

NOTE: Do not carry out further dismantling if component is removed for access only.

8. Noting the fitted position, remove and discard 16 hog rings securing cushion cover to cushion pad.
9. Remove cushion cover from cushion pad.

Refit

1. Position cushion cover to cushion pad and secure with new hog rings using 78 R002 .
2. Position seat membrane.
3. Position cushion cover assembly to cushion frame.
4. Secure front, rear and side cushion retainers to cushion frame.
5. Fit seat squab assembly. See this section.
6. Carry out system check by turning the ignition on and checking the SRS warning light illuminates for 4 seconds and then extinguishes.
