Seat squab assembly (page 2 of 2)

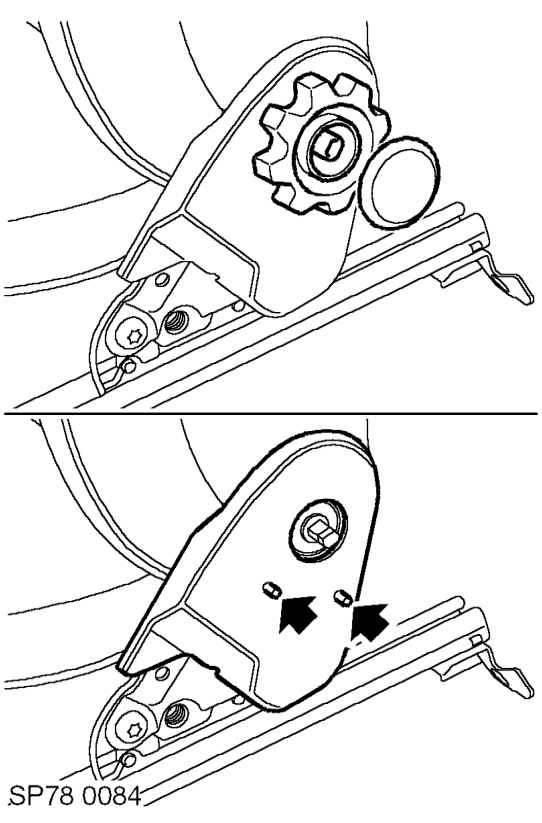

5. Remove outer half of squab recline control handle.
6. Remove inner half of recline control handle.
7. Using a suitable punch, drive out 2 retaining pins securing the side valance.
8. Remove side valance.

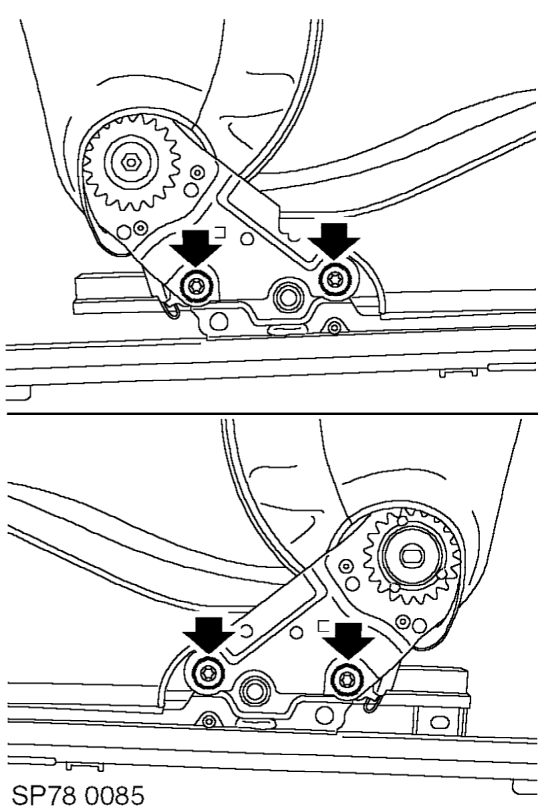

9. Remove 4 Torx bolts securing squab frame to cushion frame.
10. Remove seat squab assembly.

Refit

1. Position squab frame to cushion frame, fit Torx bolts and tighten to 45 Nm.
2. Fit side valance and secure with retaining pins.
3. Fit inner half of squab recline handle.
4. Fit outer half of squab recline handle.
5. Fit pre-tensioner to squab frame, fit Torx bolt and tighten to 45 Nm.
6. Secure pre-tensioner harness clips to underside of seat.
7. Fit front seat. See this section.
