MG TF Factory Workshop Manual (2002-2005)18 · Body
18 · Body & interior

Centre console panel (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Interior trim components
BodyCentre console panel · page 2 of 2

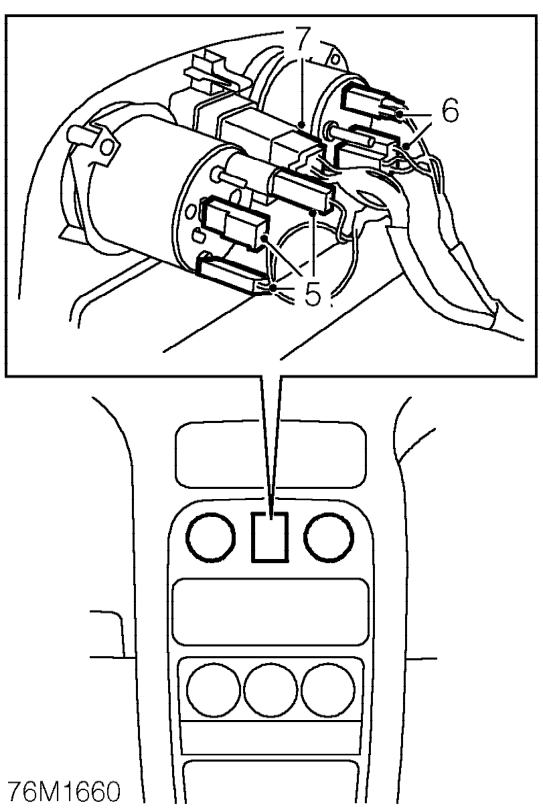

Diagram
  1. Release 3 Lucars from clock.
  2. Release multiplug and bulb holder from oil temperature gauge.
  3. Release hazard switch multiplug.

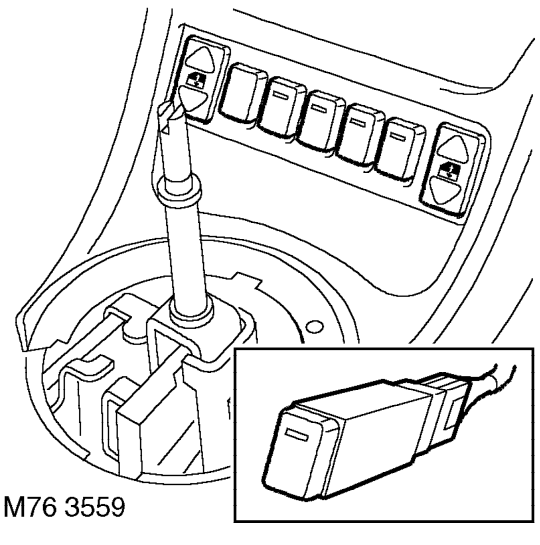

Release hazard switch multiplug.
  1. Release multiplugs from switches.
  2. Remove centre console panel.

Refit

  1. Position console and connect multiplugs, Lucars and bulb holder.
  2. Secure console clips to fascia.
  3. Fit gear lever gaiter. See this section.
  4. Fit radio. See ELECTRICAL, Repairs.
  5. Connect battery earth lead.
