InstrumentsCoolant temperature gauge

COOLANT TEMPERATURE GAUGE

Service repair no - 88.25.14

Remove

  1. Remove instrument pack window. See this section.

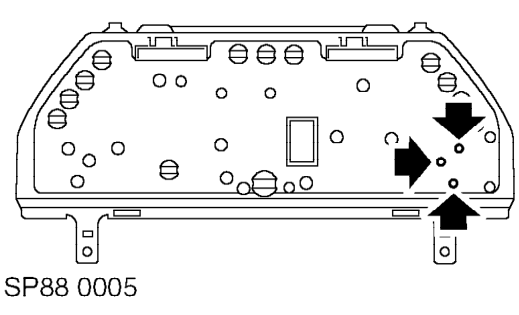

Coolant temperature gauge – Remove instrument pack window. See this section.
  1. Remove 3 screws securing temperature gauge to casing.
  2. Remove gauge.

Refit

  1. Fit gauge to instrument pack and secure with screws.
  2. Fit instrument pack window. See this section.

ENGINE COOLANT TEMPERATURE GAUGE SENSOR

Service repair no - 88.25.20

Remove

  1. Disconnect battery earth lead.
  2. Remove engine cover. See ENGINE, Repairs.

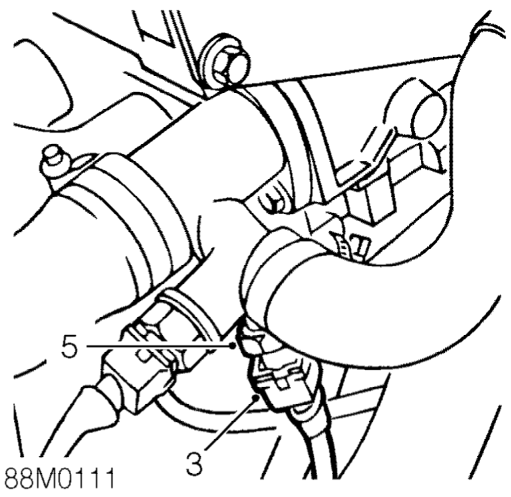

Engine coolant temperature gauge sensor – Remove engine cover. See ENGINE, Repairs.
  1. Disconnect multiplug from sensor.
  2. Position a container below sensor to collect coolant spillage
  3. Remove sensor.

Refit

  1. Clean threads of sensor.
  2. Apply Loctite 577 to threads of sensor.
  3. Fit sensor and tighten to 6 Nm.
  4. Connect multiplug to sensor.
  5. Fit engine cover. See ENGINE, Repairs.
  6. Connect battery earth lead.
  7. Top-up coolant, See COOLING SYSTEM, Adjustments.
