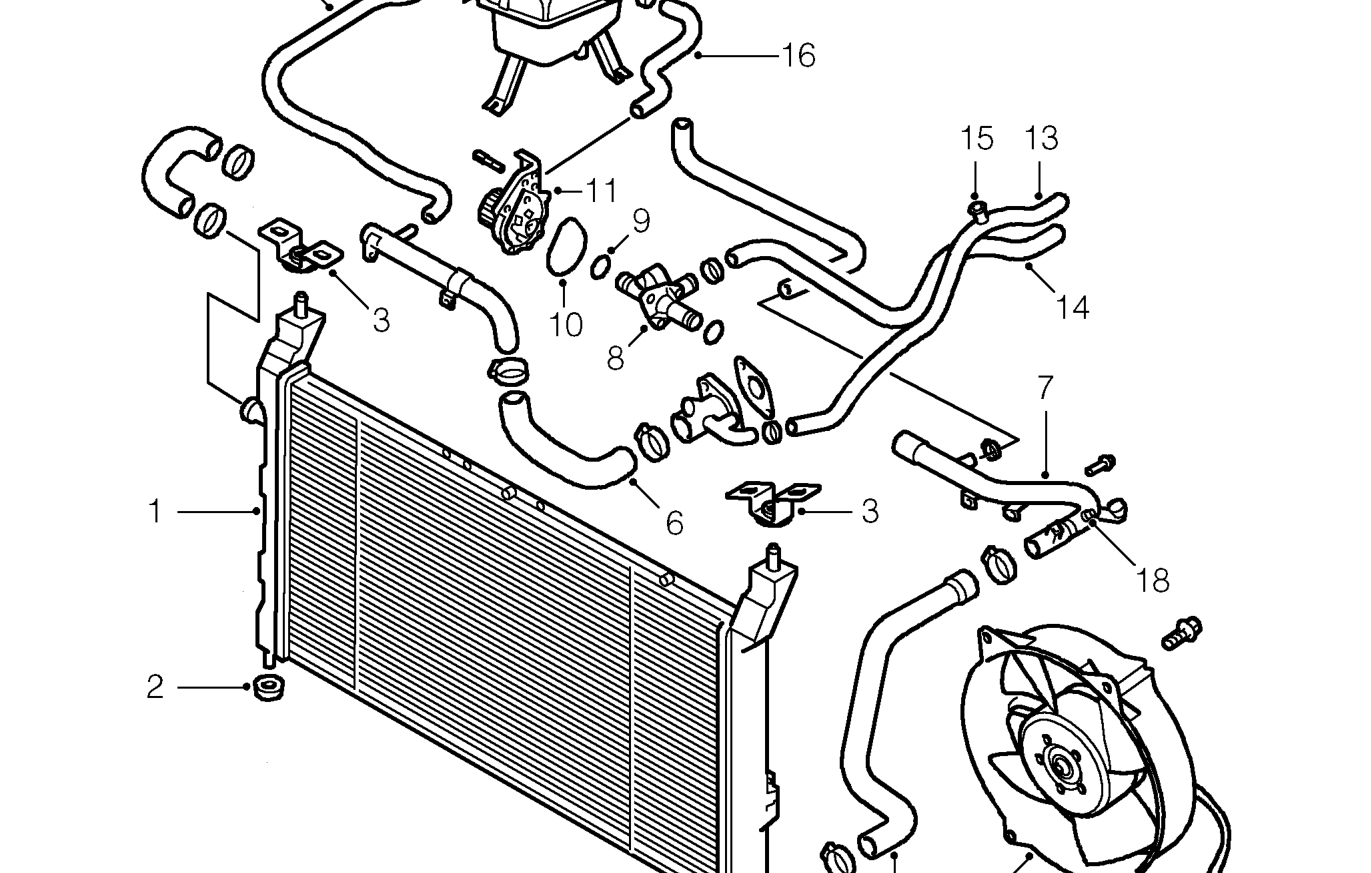

COOLING SYSTEM COMPONENTS

1. Radiator
2. Radiator mounting bushes
3. Radiator mounting brackets
4. Cooling fan
5. Bottom hose
6. Top hose
7. Pipe - bottom hose to thermostat
8. Thermostat housing
9. Thermostat housing ’O’ ring
10. Coolant pump ’O’ ring
11. Coolant pump
12. Expansion tank
13. Hose - heater feed
14. Hose - heater return
15. Bleed plug
16. Hose - expansion tank to thermostat
17. Hose - expansion tank to coolant pipe
18. Bleed screw
