GEARBOX ASSEMBLY

Service repair no - 37.20.02/99

Remove

  1. Remove bonnet. See REPAIR MANUAL - Body.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Gearbox assembly – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

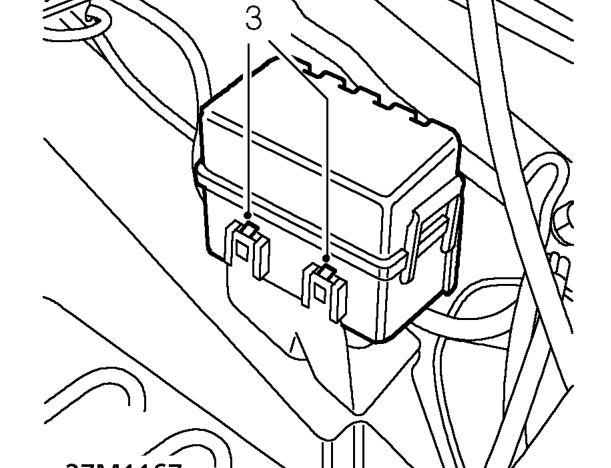

  1. Depress 2 retainers and release fuse box from bracket
Gearbox assembly – Depress 2 retainers and release fuse box from bracket

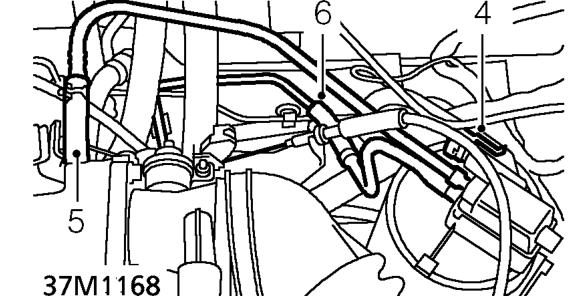

  1. Disconnect multiplug from purge valve.
  2. Disconnect purge hose from inlet manifold.
  3. Release clip and disconnect charcoal canister hose from fuel tank breather pipe.
Gearbox assembly – Release clip and disconnect charcoal canister hose from fuel tank breather pipe.

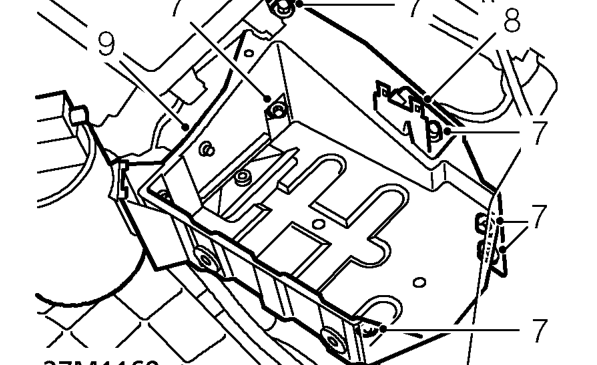

  1. Remove 5 bolts and 1 Torx screw securing battery tray.
  2. Collect fuse box bracket.
  3. Remove battery tray and charcoal canister assembly.
Gearbox assembly – Remove battery tray and charcoal canister assembly.

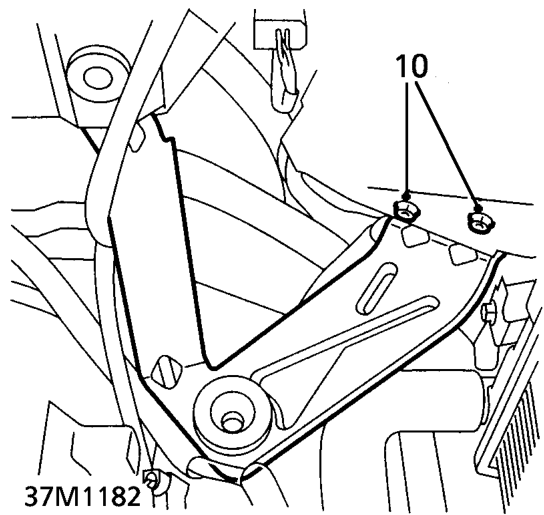

  1. Remove 2 nuts securing air cleaner support bracket and remove bracket.
