Gearbox assembly (page 2 of 6)

Make

Rover

Model

100 Repair Manual Supplement

Year

1996–1998

Section

Repairs

Manual gearboxGearbox assembly · page 2 of 6

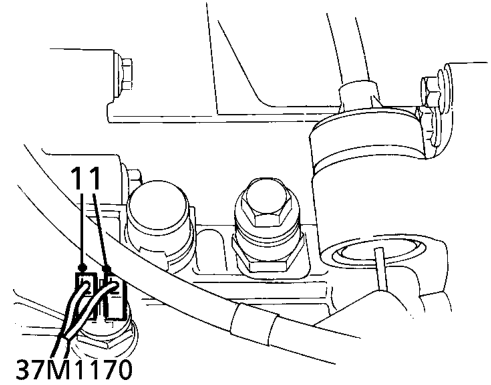

11. Disconnect 2 reverse switch Lucars.

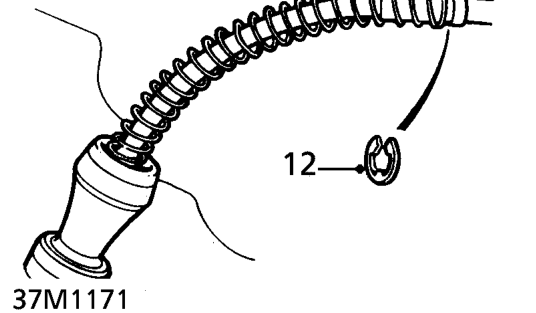

12. Remove clutch cable tension spring ’C’ clip

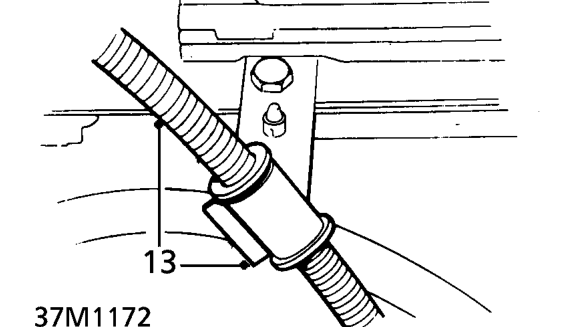

13. Release clutch cable from bulkhead clip.

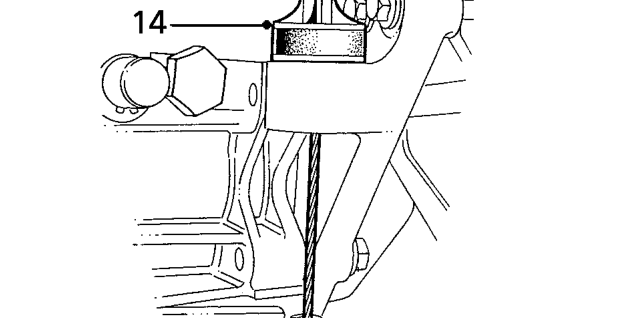

14. Release clutch cable from release lever and abutment bracket. Move cable aside.

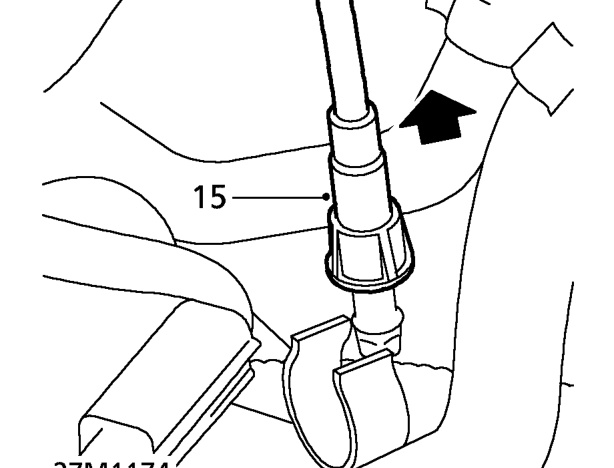

15. Release clip securing speedo cable joint and separate upper cable from lower cable.

09 Transmission
