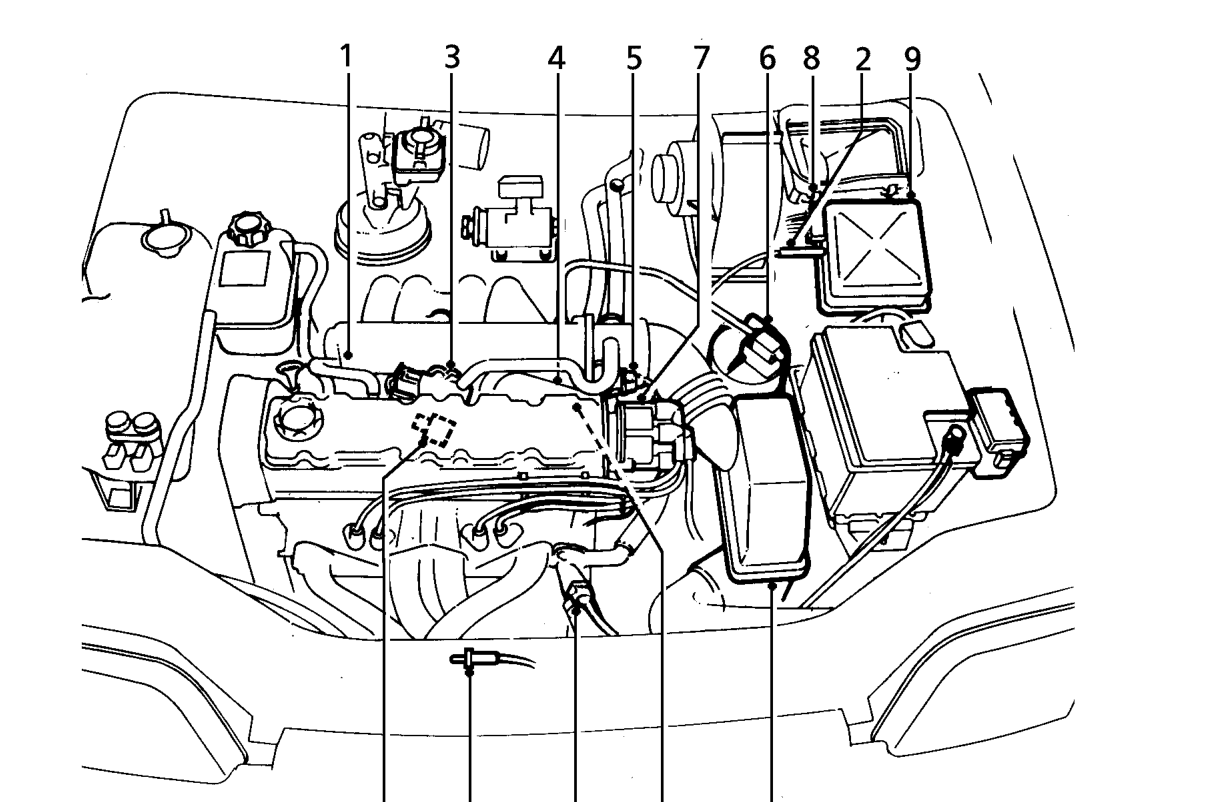

ENGINE COMPARTMENT COMPONENT LOCATIONS

1. Fuel pressure regulator
2. Manifold absolute pressure sensor (part of ECM)
3. Idle air control valve
4. Intake air temperature sensor
5. Throttle position sensor
6. EVAP canister and purge valve
7. Distributor
8. Relay module
9. Engine control module (ECM)
10. Air cleaner
11. Engine coolant temperature sensor
12. Crankshaft position sensor
13. Oxygen sensor
14. Ignition coil
