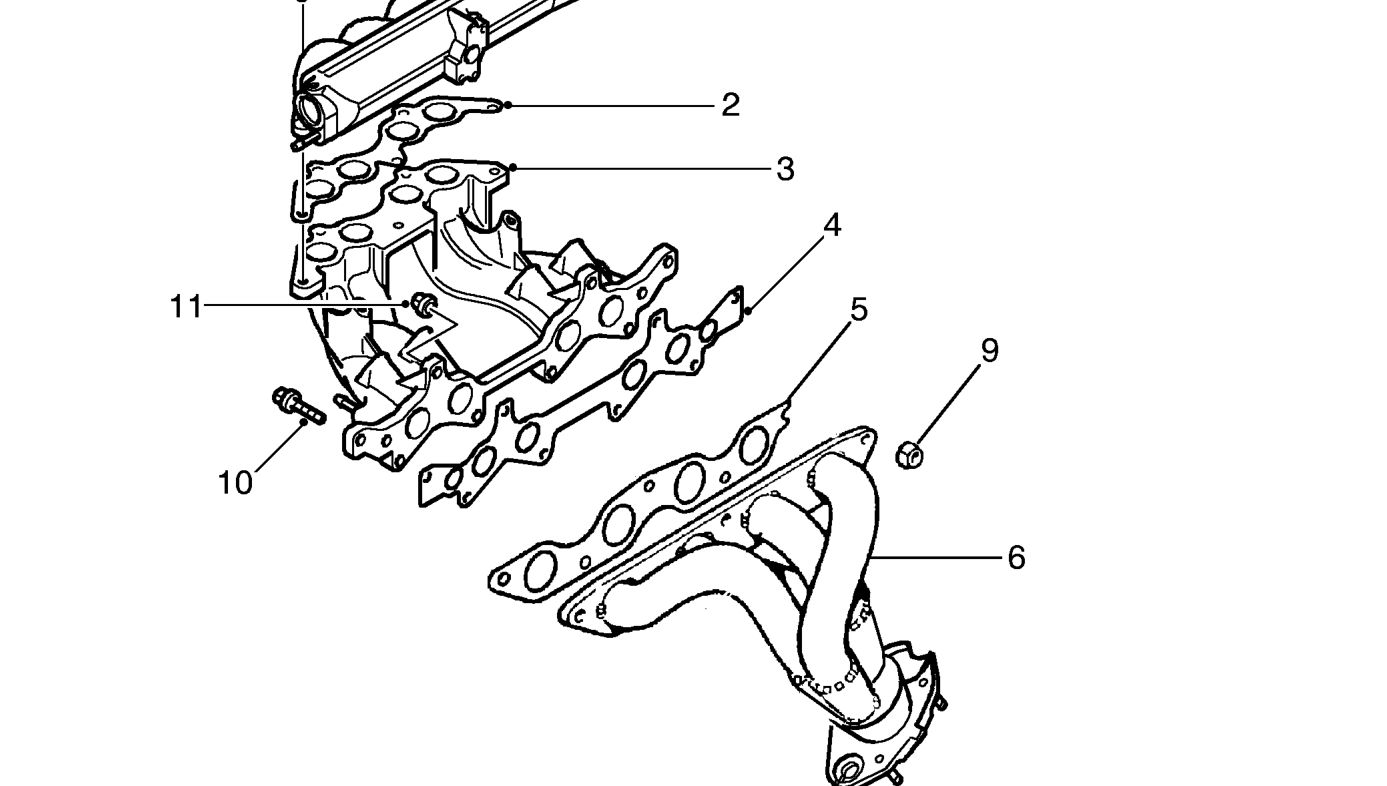

INLET AND EXHAUST MANIFOLD

1. Inlet manifold chamber
2. Gasket - inlet manifold chamber
3. Inlet manifold
4. Gasket - inlet manifold to cylinder head
5. Gasket - exhaust manifold to cylinder head
6. Exhaust manifold
7. Gasket - exhaust front pipe to manifold
8. Self-locking nut
9. Flanged nut
10. Flanged bolt - inlet manifold to cylinder head
11. Flanged nut
12. Flanged bolt - manifold chamber to manifold
