Cooling fan (page 2 of 2)

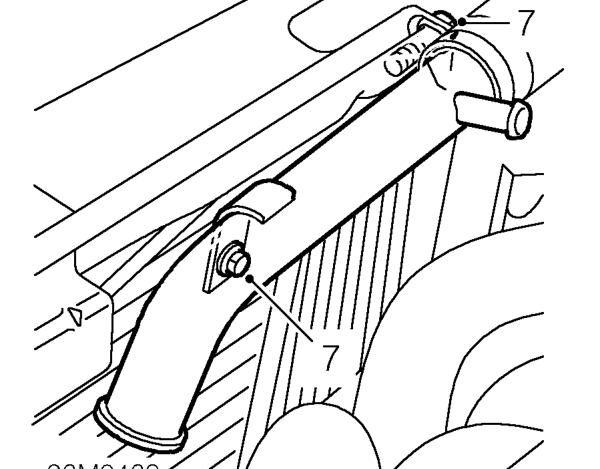

7. Remove 2 bolts securing coolant pipe to radiator.
8. Release radiator from lower mountings and remove.

Do not carry out further dismantling if component is removed for access only.

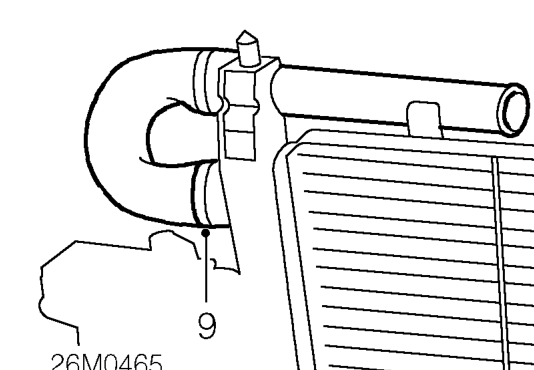

9. Remove clip securing coolant pipe hose to radiator.
10. Disconnect hose and remove coolant pipe and hose assembly.

Refit

1. Fit coolant pipe and hose assembly and tighten hose clip.
2. Fit radiator assembly.
3. Align coolant pipe and tighten bolts.
4. Fit radiator top mounting brackets and fit and tighten bolts.
5. Fit top hose to engine, connect hose to radiator and tighten hose clips.
6. Connect bottom and expansion tank hoses to radiator and tighten hose clips.
7. Fit cooling fan and cowl assembly. See COOLING SYSTEM - ’K’ SERIES, Repairs.
8. Refill cooling system. See REPAIR MANUAL - Maintenance.
9. Remove container.
