Manifold & exhaust systemsFront pipe to manifold gasket · page 1 of 4

FRONT PIPE TO MANIFOLD GASKET

Service repair no - 30.10.26

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

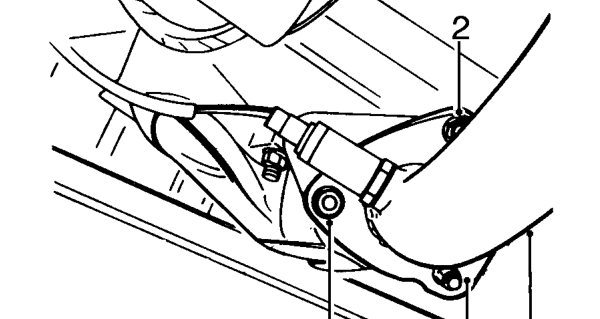

Front pipe to manifold gasket – Raise front of vehicle.
  1. Remove 3 nuts securing front pipe to manifold.
  2. Release front pipe from manifold.

CAUTION: DO NOT let the front pipe hang on oxygen sensor lead.

  1. Remove gasket from manifold flange.

Refit

  1. Clean manifold and front pipe flanges.
  2. Fit new gasket to manifold flange.
  3. Position front pipe to manifold, fit nuts and tighten to 50 Nm.
  4. Remove stand(s) and lower vehicle.

INLET MANIFOLD GASKET

Service repair no - 30.15.08

Remove

  1. Disconnect battery earth lead.
  2. Drain cooling system. See REPAIR MANUAL - Maintenance.

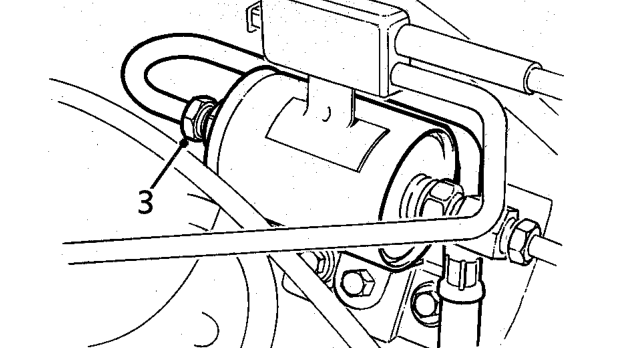

Inlet manifold gasket – Drain cooling system. See REPAIR MANUAL - Maintenance.
  1. Position absorbent cloth around fuel filter outlet union. Loosen union to relieve fuel pressure. Re-tighten union to 28 Nm.

CAUTION: To prevent damage to fuel system pipes and components, use two spanners when loosening or tightening unions.
