Front pipe to manifold gasket (page 2 of 4)

Make

Rover

Model

100 Repair Manual Supplement

Year

1996–1998

Section

Repairs

Manifold & exhaust systemsFront pipe to manifold gasket · page 2 of 4

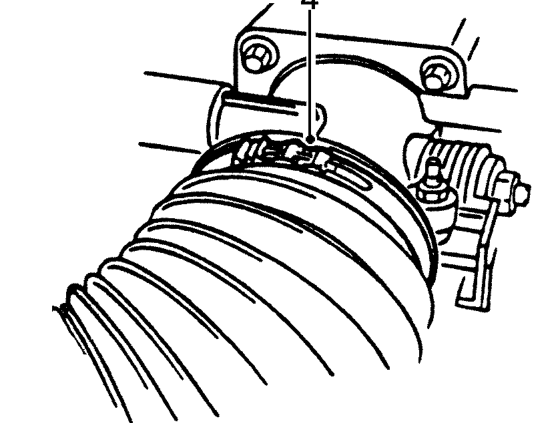

4. Remove clip and disconnect air intake hose from throttle housing.

5. Disconnect purge hose from inlet manifold.

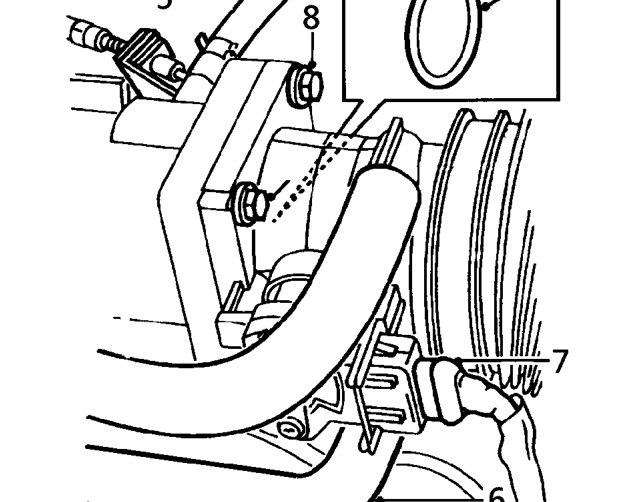

6. Release clip and disconnect breather hose from throttle housing.
7. Disconnect multiplug from TP sensor.
8. Remove 4 bolts securing throttle housing to inlet manifold, collect multiplug bracket and place throttle housing aside.
9. Remove and discard ’O’ ring from throttle housing.

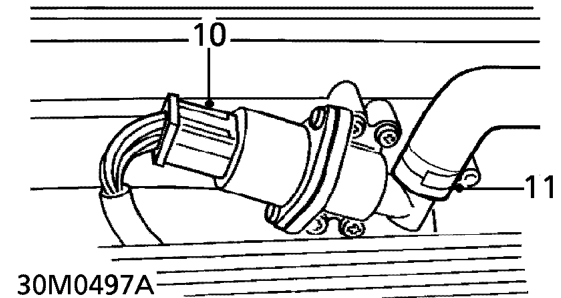

10. Disconnect hose from IACV and remove hose from throttle housing
11. Disconnect multiplug from IACV.

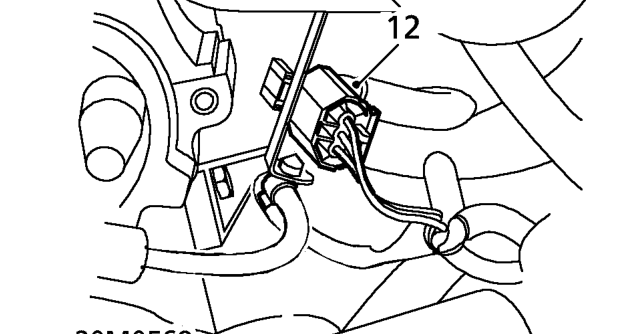

12. Release injector harness multiplug from bracket and disconnect multiplug.

08 Engine
