Repairs › Inlet manifold chamber gasket
Manifold & exhaust systemsInlet manifold chamber gasket · page 1 of 3

Refit

  1. Clean mating faces of cylinder head and manifold.
  2. Fit new gasket to manifold studs.
Fit new gasket to manifold studs.

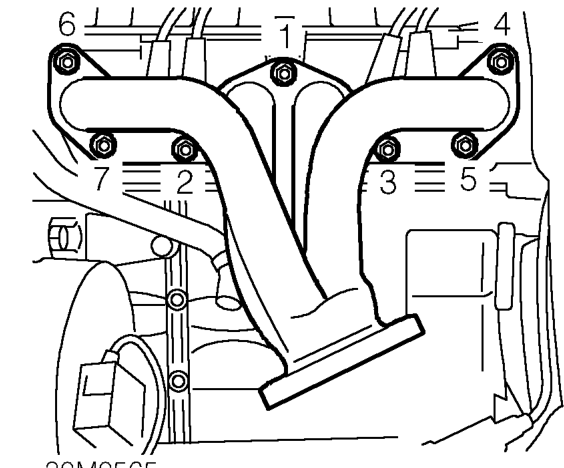

  1. Position manifold on studs, fit nuts and tighten in the sequence shown to 45 Nm.
  2. Clean exhaust manifold and front pipe flange mating faces.
  3. Fit flange gasket, connect front pipe, fit nuts and tighten to 50 Nm.
  4. Remove stand(s) and lower vehicle.

INLET MANIFOLD CHAMBER GASKET

Service repair no - 30.15.37

Remove

  1. Disconnect battery earth lead.
Inlet manifold chamber gasket – Disconnect battery earth lead.

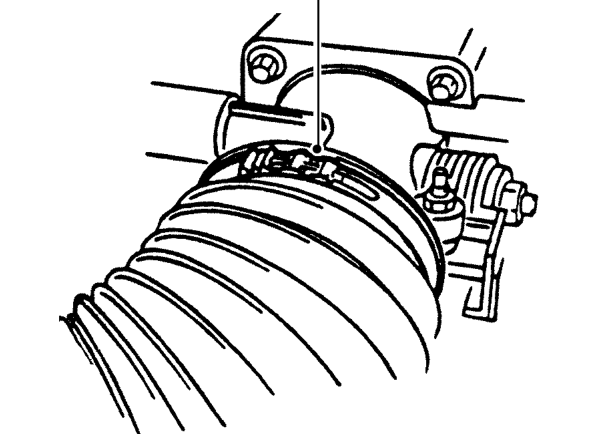

  1. Release clip and disconnect air intake hose from throttle housing.
Inlet manifold chamber gasket – Release clip and disconnect air intake hose from throttle housing.

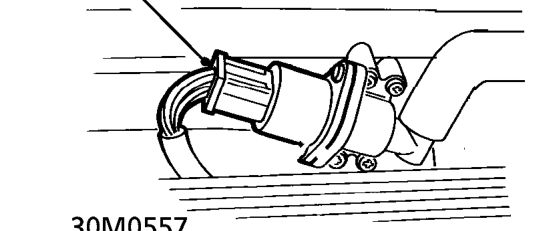

  1. Disconnect multiplug from IACV.
