Inlet manifold chamber gasket (page 2 of 3)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
Manifold & exhaust systemsInlet manifold chamber gasket · page 2 of 3
Diagram

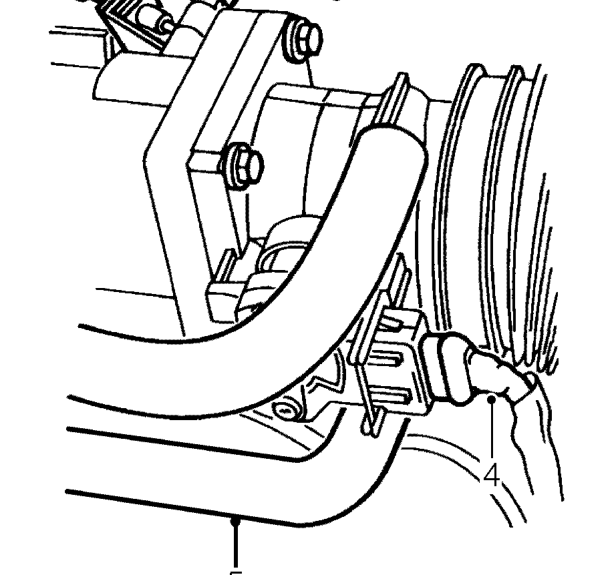

  1. Disconnect multiplug from TP sensor.
  2. Release clip and disconnect breather hose from throttle housing.
  3. Disconnect purge hose from manifold chamber.
Disconnect purge hose from manifold chamber.

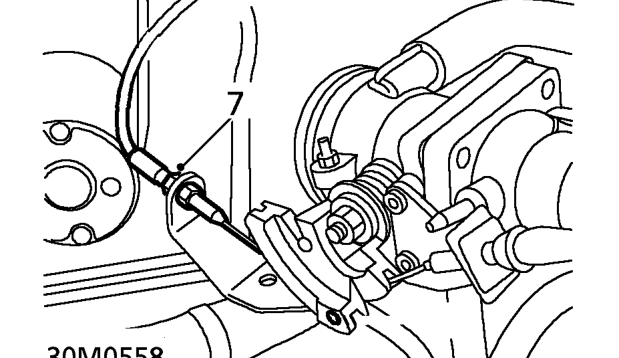

  1. Automatic models: Loosen locknut, release kickdown cable from abutment bracket and disconnect inner cable from throttle cam.
Automatic models: Loosen locknut, release kickdown cable from abutment bracket and disconn

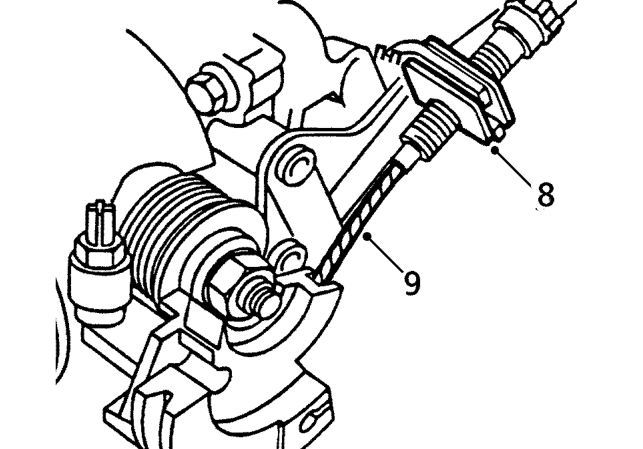

  1. Release throttle cable adjusting nut from abutment bracket.
  2. Disconnect throttle cable from throttle cam.
Disconnect throttle cable from throttle cam.

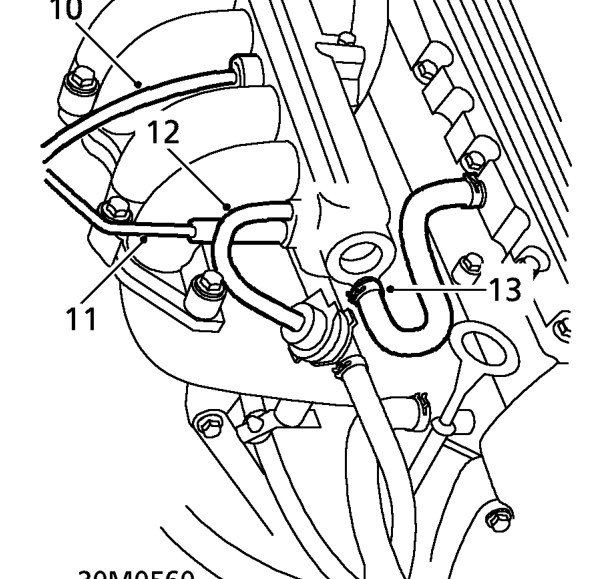

  1. Depress plastic collar and disconnect brake servo vacuum hose from manifold chamber.
  2. Disconnect ECM vacuum hose from manifold chamber.
  3. Disconnect fuel pressure regulator vacuum hose from manifold chamber.
  4. Release clip and disconnect breather hose from manifold chamber.
