Rover 100 Repair Manual Supplement (1996-1998)08 · Manifold & exhaust systems
08 · Engine

Front pipe to manifold gasket (page 3 of 4)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
Manifold & exhaust systemsFront pipe to manifold gasket · page 3 of 4
Diagram

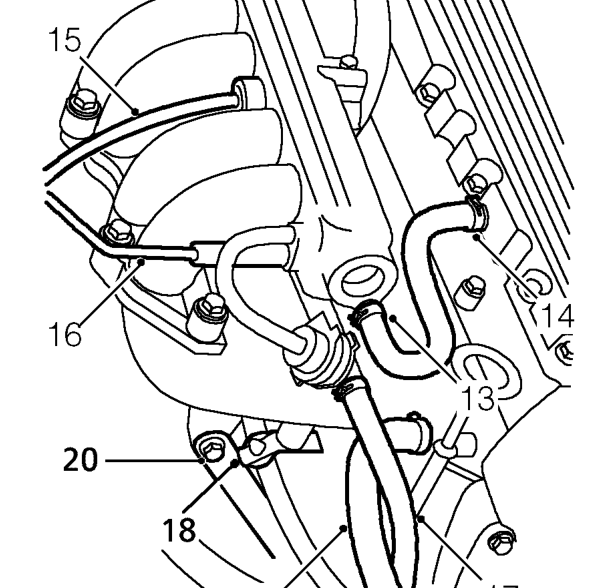

  1. Release clip and disconnect breather hose from manifold.
  2. Release clip and remove breather hose from camshaft cover.
  3. Depress plastic collar and disconnect brake servo hose from inlet manifold.
  4. Disconnect ECM vacuum hose from inlet manifold.
  5. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

  1. Release fuel return hose from 2 clips on underside of inlet manifold.
  2. Release clip and disconnect coolant hose from inlet manifold.
  3. Remove bolt securing support stay to inlet manifold.

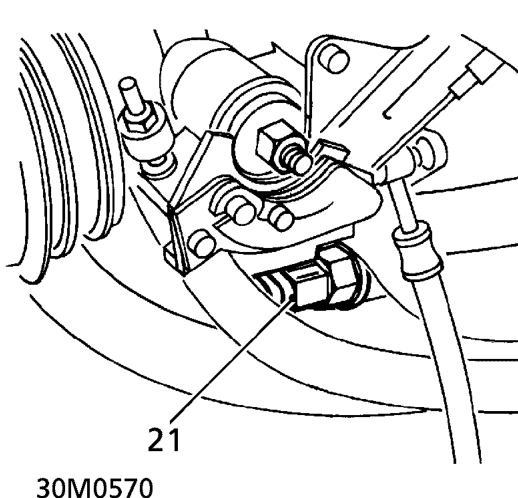

Remove bolt securing support stay to inlet manifold.
  1. Disconnect multiplug from IAT sensor.

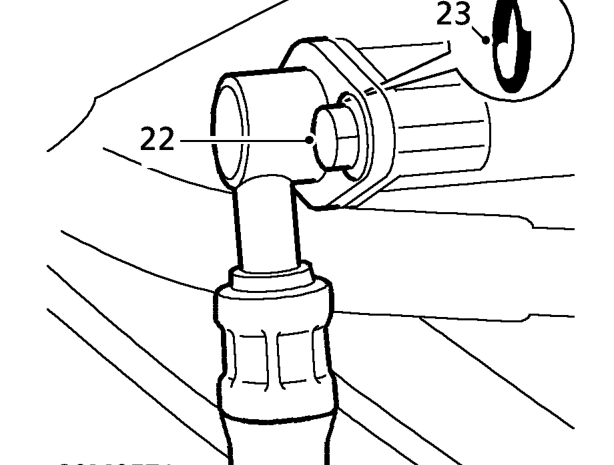

Disconnect multiplug from IAT sensor.
  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe from fuel rail, remove and discard ’O’ ring.

CAUTION: Plug the connections.
