Rover 100 Repair Manual Supplement (1996-1998)09 · Manual gearbox
09 · Transmission

Gearbox assembly (page 4 of 6)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
Manual gearboxGearbox assembly · page 4 of 6
Diagram
  1. Remove 2 bolts securing flywheel rear cover plate and nut and bolt securing harness bracket and flywheel rear cover plate.
  2. Release harness bracket and remove rear cover plate.

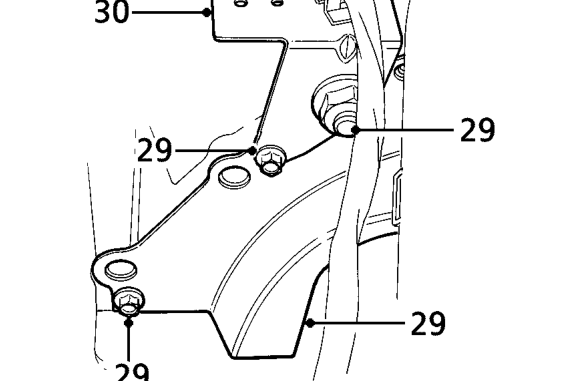

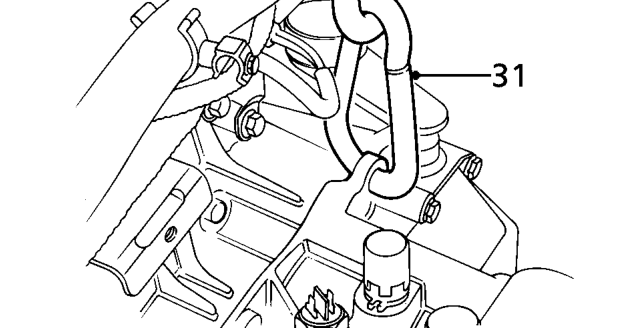

Release harness bracket and remove rear cover plate.
  1. Fit suitable lifting equipment to gearbox lifting eye.
  2. Raise chains to take weight of gearbox without exerting load on mountings.
  3. Support engine on a jack.

CAUTION: Use a block of wood or hard rubber pad to protect engine.

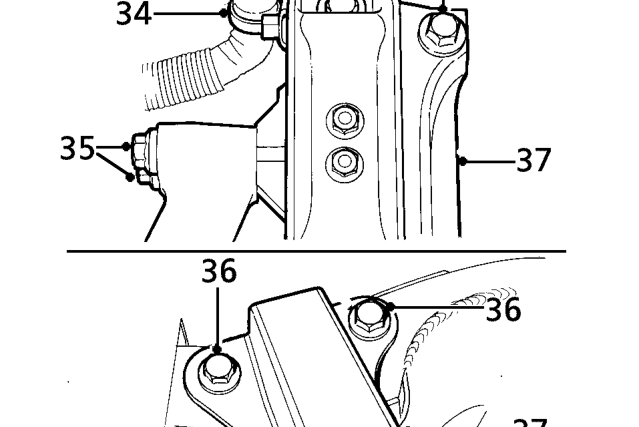

Support engine on a jack.
  1. Release clip securing harness to gearbox mounting support member.
  2. Remove 2 bolts securing LH mounting bracket to mounting.
  3. Remove 4 bolts securing mounting support member to subframe.
  4. Remove support member.

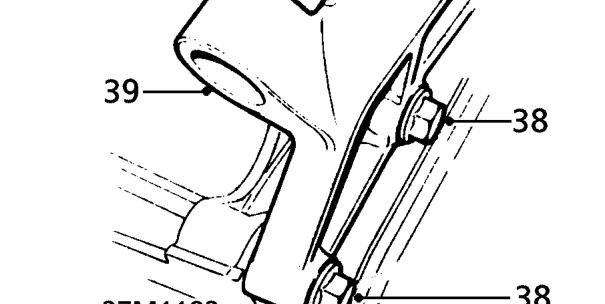

Remove support member.
  1. Remove 2 bolts securing gearbox LH mounting bracket to gearbox.
  2. Remove mounting bracket.
