Engine management system - MEMSAir cleaner

AIR CLEANER

Service repair no - 19.10.01

Remove

  1. Remove battery. See REPAIR MANUAL - Electrical.

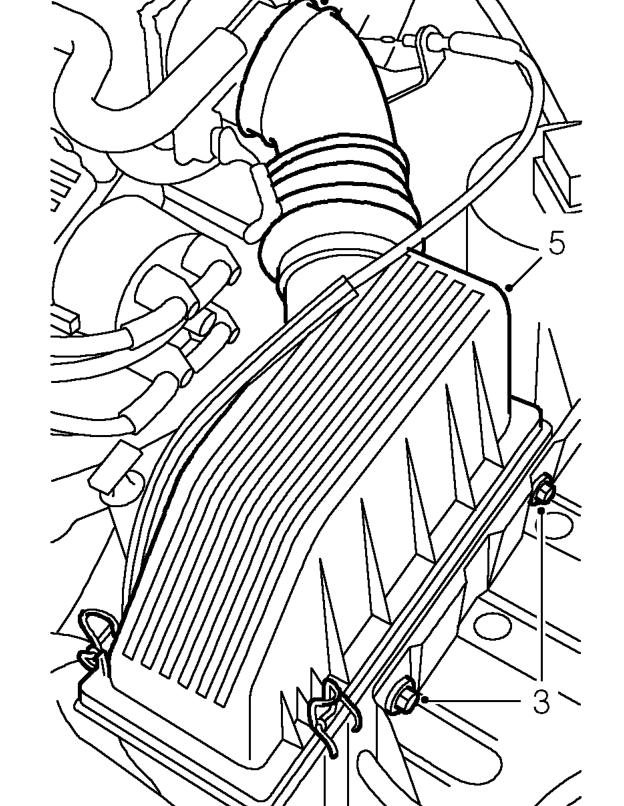

Air cleaner – Remove battery. See REPAIR MANUAL - Electrical.
  1. Release clip securing intake hose to throttle housing.
  2. Remove 2 bolts securing air cleaner to battery tray.
  3. Disconnect intake hose from throttle housing.
  4. Release and remove air cleaner assembly.

Refit

  1. Position and locate air cleaner.
  2. Align air cleaner to battery tray.
  3. Fit bolts securing air cleaner to battery tray and tighten to 9 Nm.
  4. Connect intake hose to throttle housing and secure clip.
  5. Fit battery. See REPAIR MANUAL - Electrical.
