THROTTLE CABLE

Service repair no - 19.20.06

Remove

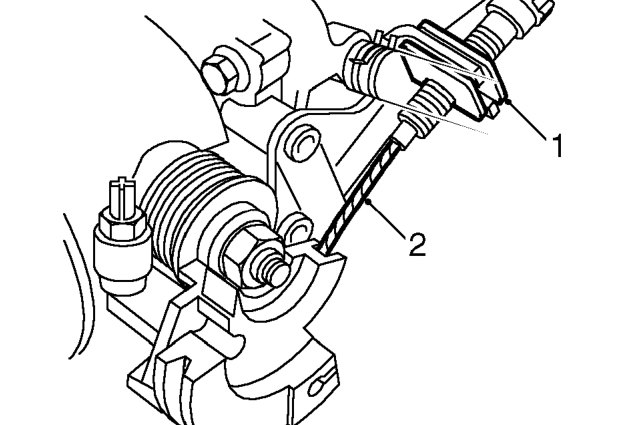

Throttle cable – Service repair no - 19.20.06
  1. Release cable adjusting nut from abutment bracket.
  2. Release inner cable from cam.
Throttle cable – Release inner cable from cam.

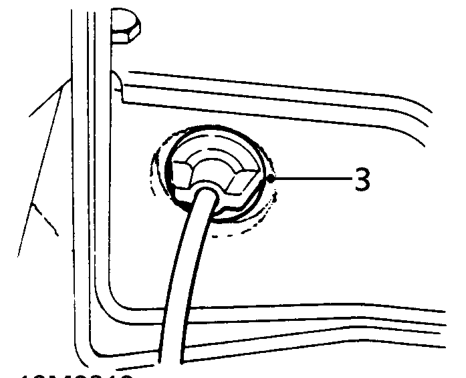

  1. Rotate collar through 90° and release cable from bulkhead.
Throttle cable – Rotate collar through 90° and release cable from bulkhead.

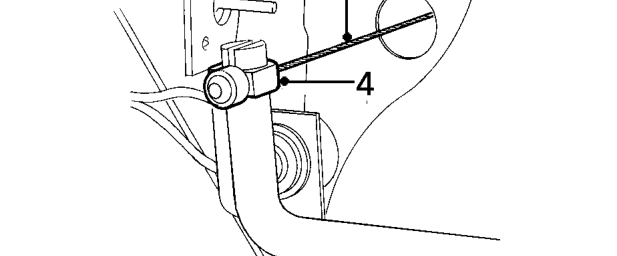

  1. Release nylon clip and disconnect throttle cable from pedal.
  2. Remove throttle cable.

Refit

  1. Feed cable through bulkhead and connect inner cable to pedal.
  2. Smear rubber grease of both sides of the rubber seal and secure cable to bulkhead.
  3. Connect throttle cable to throttle cam.
  4. Connect cable adjusting nut to abutment bracket.
  5. Adjust throttle cable. See Adjustments.
