INTAKE AIR TEMPERATURE (IAT) SENSOR

Service repair no - 18.30.09

Remove

  1. Disconnect battery earth lead.
Intake air temperature (iat) sensor – Disconnect battery earth lead.
  1. Disconnect multiplug from IAT sensor.
  2. Remove IAT sensor.

Refit

  1. Clean threads of IAT sensor.
  2. Clean mating faces of IAT sensor and inlet manifold.
  3. Fit IAT sensor to inlet manifold and tighten to 7 Nm.
  4. Connect multiplug to IAT sensor.
  5. Connect battery earth lead.

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Service repair no - 18.30.10

Remove

  1. Disconnect battery earth lead.

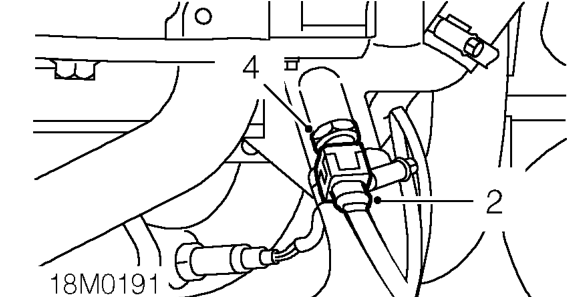

Engine coolant temperature (ect) sensor – Disconnect battery earth lead.
  1. Disconnect multiplug from ECT sensor.
  2. Position container to collect coolant spillage.
  3. Remove ECT sensor.

Refit

  1. Clean threads of ECT sensor.
  2. Apply Loctite 577 to threads of ECT sensor.
  3. Fit ECT sensor and tighten to 15 Nm.
  4. Connect multiplug to ECT sensor.
  5. Connect battery earth lead.
  6. Top-up coolant. See REPAIR MANUAL - Maintenance.
