Engine management system - MEMSECM fuel trap · page 1 of 2

ECM FUEL TRAP

Service repair no - 19.25.10

Remove

  1. Disconnect battery earth lead.

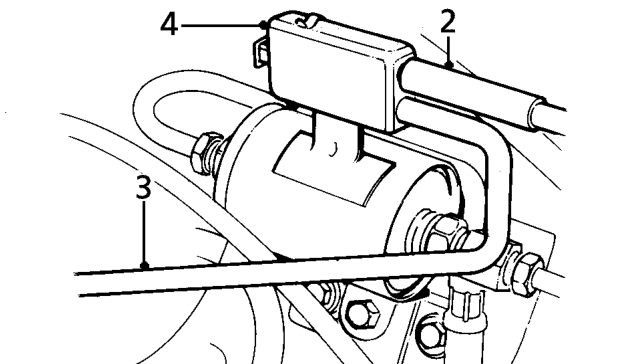

Ecm fuel trap – Disconnect battery earth lead.
  1. Disconnect ECM vacuum hose from fuel trap.
  2. Disconnect vacuum hose for inlet manifold.
  3. Release and remove fuel trap from mounting bracket.

Refit

  1. Fit fuel trap to mounting bracket.
  2. Connect vacuum hoses to fuel trap and inlet manifold.
  3. Connect battery earth lead.

FUEL RAIL

Service repair no - 19.60.04

Remove

  1. Disconnect battery earth lead.
  2. Position absorbent cloth around fuel filter outlet union.

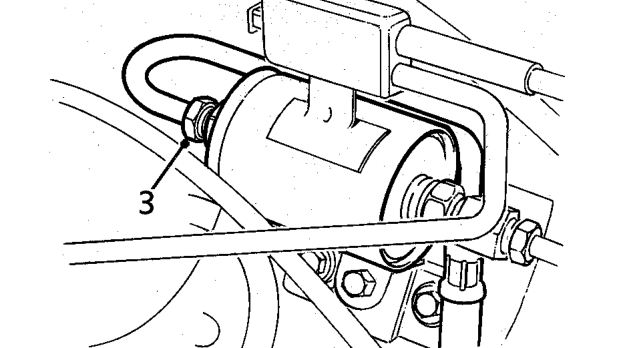

Fuel rail – Position absorbent cloth around fuel filter outlet union.
  1. Loosen union to relieve fuel pressure, then re-tighten to 28 Nm.

CAUTION: To prevent damage to fuel system pipes or components, use two spanners when loosening or tightening unions.

  1. Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
