Rover 100 Repair Manual Supplement (1996-1998)05 · Engine management system - MEMS
05 · Engine

ECM fuel trap (page 2 of 2)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
Engine management system - MEMSECM fuel trap · page 2 of 2
Diagram

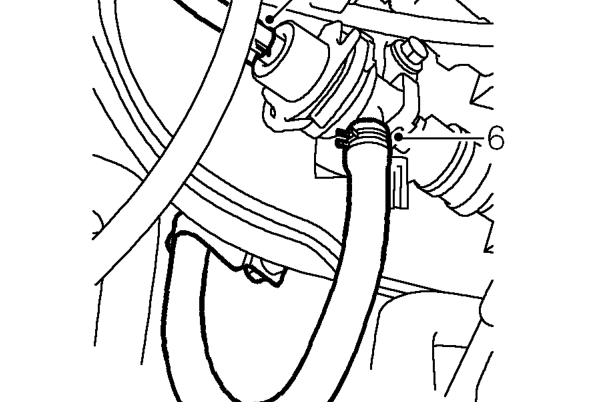

  1. Release clip and remove vacuum hose from fuel pressure regulator.
  2. Release clip and disconnect fuel return hose from fuel pressure regulator.

CAUTION: Plug the connections.

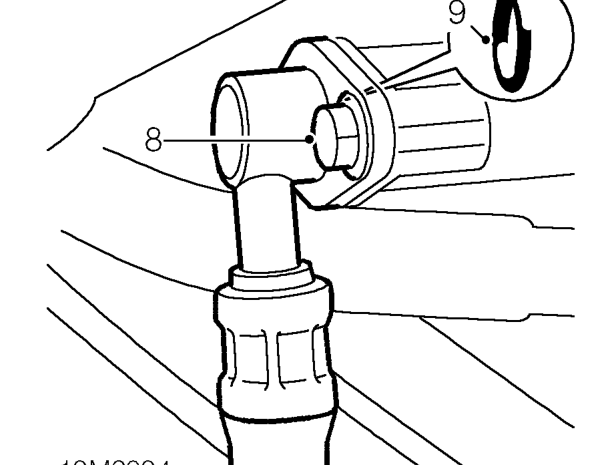

  1. Position an absorbent cloth around fuel feed connection.
Position an absorbent cloth around fuel feed connection.

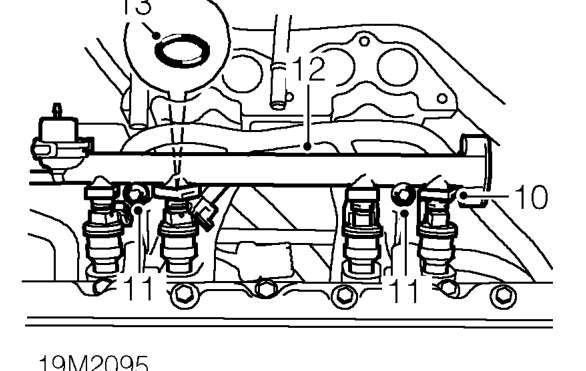

  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe from fuel rail and discard ’O’ ring.

CAUTION: Plug the connections.

Release fuel feed pipe from fuel rail and discard ’O’ ring.
  1. Remove 4 clips securing injectors to fuel rail.
  2. Remove 2 bolts securing fuel rail to inlet manifold.
  3. Release and remove fuel rail from injectors.
  4. Remove and discard ’O’ ring from each injector.
  5. Fit protective caps to each injector.
