Rear screen (page 3 of 3)

12. Apply primer (red top) to screen aperture.

NOTE: At this point, sealant re-activator (blue top) may be applied to old sealant band around screen aperture.

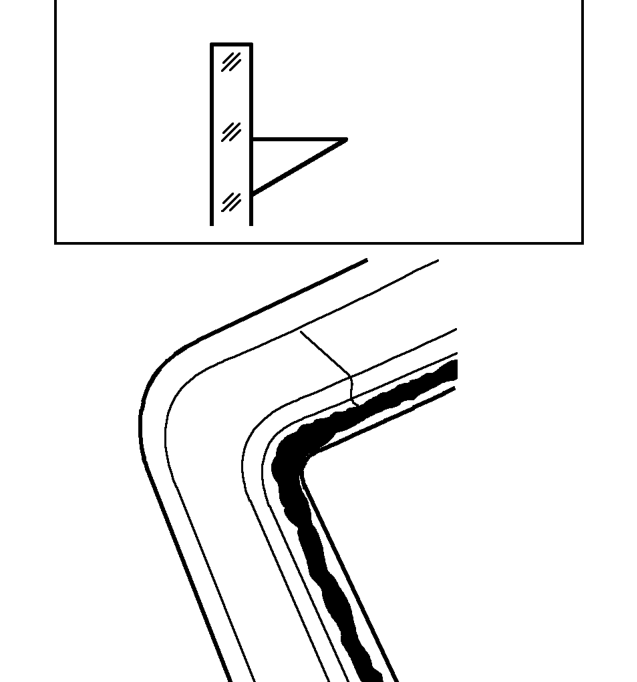

13. Fit pre-cut nozzle to sealer cartridge, remove lid and shake out crystals. Install in applicator gun.

NOTE: Nozzle will need modification to achieve required bead section.

14. Apply a continuous bead of sealant around aperture as shown. Make bead slightly thicker at each corner.
15. Check for breaks or air bubbles in sealant.
16. With assistance, lift screen into place and align to tape. Lightly press glass to seat sealer.
17. Remove protective covers and tape.
18. Test screen for leaks and apply additional sealant if necessary. If water is used, allow sealant to dry before testing.
19. Connect 2 leads to rear screen demister.
20. Fit tailgate spoiler. See Exterior fittings.
21. Fit rear screen wiper motor. See WIPERS & WASHERS, Repairs.

CAUTION: A curing time of 6 hours is desirable, during this time leave a window open and do not slam the doors.
