WINDSCREEN WASHER RESERVOIR

Service repair no - 84.10.01

Remove

  1. Remove front bumper. See BODY, Exterior fittings.
  2. Position container to collect any fluid loss.

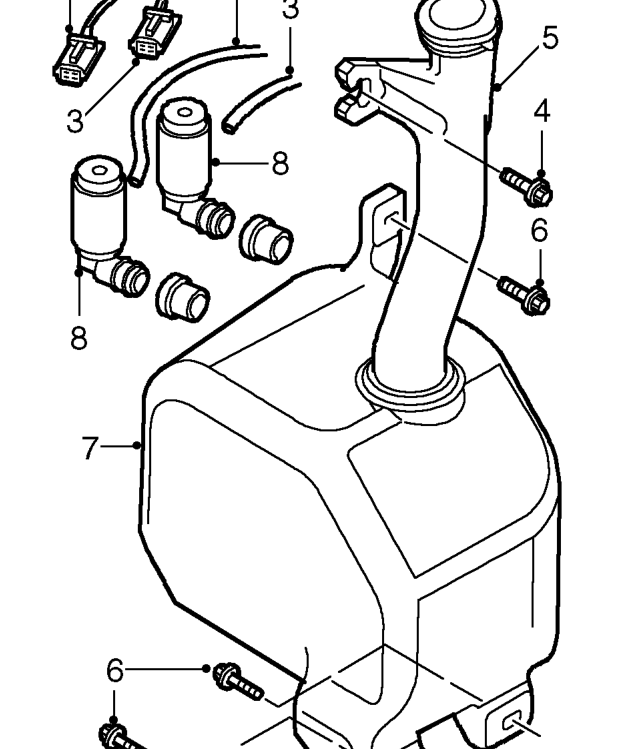

Windscreen washer reservoir – Position container to collect any fluid loss.
  1. Disconnect multiplugs and hoses from washer pumps.
  2. Remove bolt securing reservoir filler neck to body.
  3. Remove filler neck from reservoir.
  4. Remove 3 bolts securing washer reservoir to body.
  5. Remove washer reservoir.
  6. Release pumps from reservoir and remove seals.

Refit

  1. Lubricate and fit pump seals to reservoir.
  2. Fit pumps to reservoir.
  3. Position reservoir and secure with bolts.
  4. Connect hoses and multiplugs to pumps.
  5. Position filler neck to reservoir and secure to body with bolt.
  6. Fit front bumper. See BODY, Exterior fittings.
