WINDSCREEN WIPER ARM

Service repair no - 84.15.02

Remove

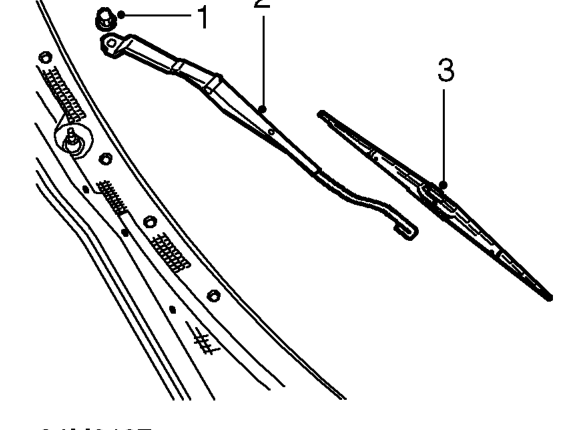

Windscreen wiper arm – Service repair no - 84.15.02
  1. Remove wiper spindle nut.
  2. Remove wiper arm from spindle. Do not carry out further dismantling if component is removed for access only.
  3. Remove wiper blade. See this section.

Refit

  1. Fit wiper blade to arm, check blade is retained.
  2. Fit wiper arm to spindle. Set blades to dimension ’A’ 37 mm, or dimension ’B’ 40 mm.
  3. Fit nut and tighten to 10 Nm.

WINDSCREEN WIPER BLADE

Service repair no - 84.15.06

Remove

  1. Lift wiper arm from screen.

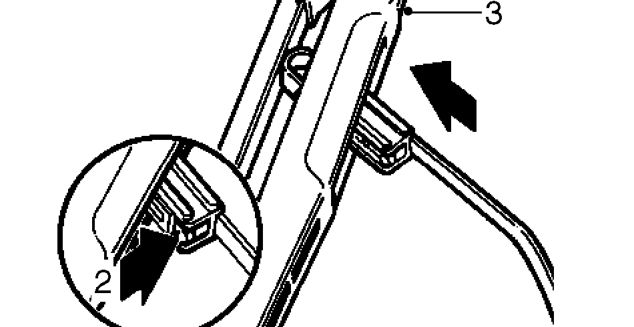

Windscreen wiper blade – Lift wiper arm from screen.
  1. Press retaining lever.
  2. Slide blade down arm and withdraw.

Refit

  1. Position new blade to wiper arm.
  2. Push blade into engagement with arm. check blade is retained.
  3. Lower wiper arm onto screen.
