Rear screen wiper arm

REAR SCREEN WIPER ARM

Service repair no - 84.35.01

Remove

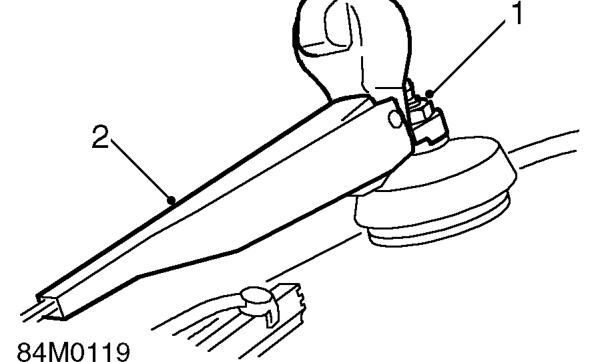

1. Raise rear screen washer jet and remove nut.
2. Remove wiper arm.
3. Remove wiper blade. See this section.

Refit

1. Fit wiper blade. See this section.
2. Operate the motor and then switch off. ensure spindle is in ’park’ position.
3. Fit wiper arm, tighten nut to 10 Nm. Fit rear screen washer jet.

NOTE: Position end of wiper blade to alignment mark on screen.

REAR SCREEN WIPER BLADE

Service repair no - 84.35.02

Remove

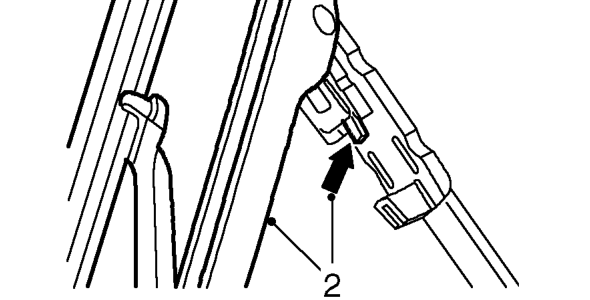

1. Lift wiper arm from rear screen.

2. Press retaining lever and slide blade down arm.

Refit

1. Position new blade to wiper arm.
2. Push blade into engagement with arm. Check blade is retained.
3. Lower wiper arm onto rear screen.
