Washer jet - windscreen

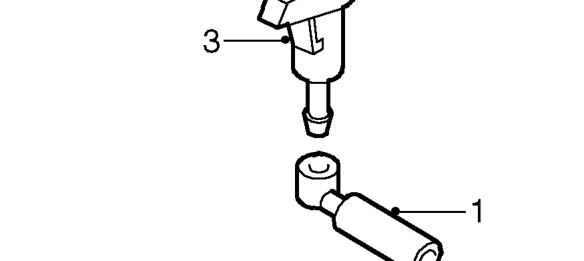

WASHER JET - WINDSCREEN

Service repair no - 84.10.08

Remove

1. Disconnect tube from washer jet.
2. Models with heated washer jets: Disconnect multiplug from washer jet.
3. All models: Depress plastic lugs and remove washer jets from bonnet.

Refit

1. Fit washer jet to bonnet and connect tube.
2. Models with heated washer jets: Connect multiplug to washer jet.
3. All models: Adjust jet so that the inside spray is to the centre of the screen, and the outer spray is to the top of the screen.

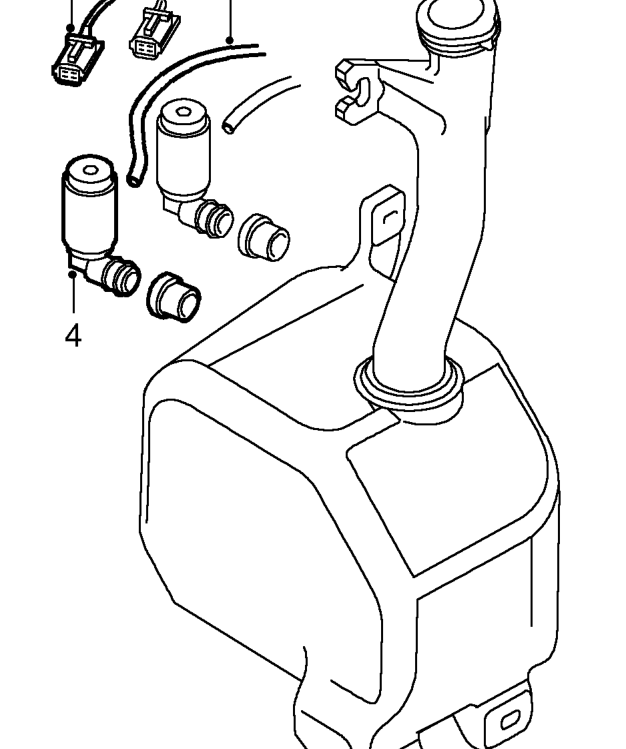

WASHER PUMP - WINDSCREEN

Service repair no - 84.10.21

Remove

1. Remove front bumper. See BODY, Exterior fittings.
2. Position container to collect any fluid loss.

3. Disconnect multiplug and hose from windscreen washer pump.
4. Release pump from reservoir and remove seal.

Refit

1. Lubricate and fit pump seal to reservoir.
2. Fit pump to reservoir.
3. Connect hose and multiplug to pump.
4. Refit front bumper. See BODY, Exterior fittings.
5. Refill washer reservior.
