Rear screen wiper motor

REAR SCREEN WIPER MOTOR

Service repair no - 84.35.12

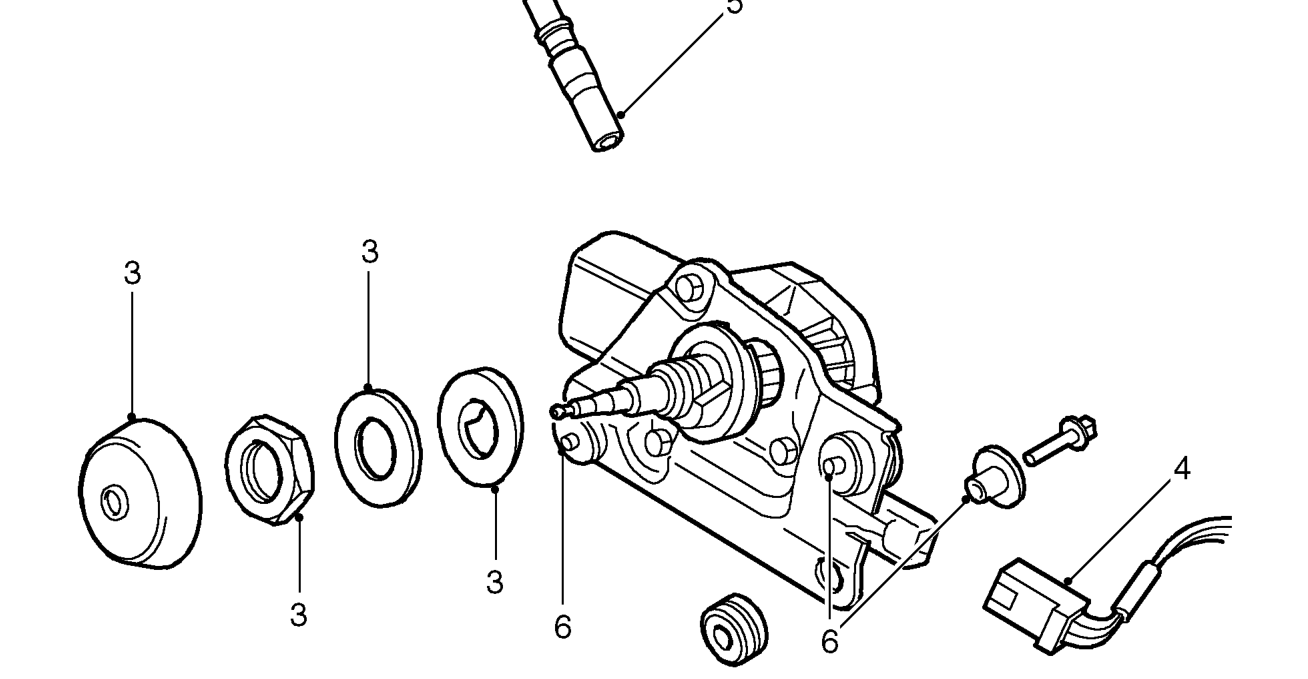

Remove

1. Remove tailgate trim casing. See BODY, Interior trim components.
2. Remove rear wiper arm. See this section.
3. Remove spindle nut cover, spindle nut, flat washer and rubber seal.
4. Disconnect tailgate harness from wiper motor.
5. Disconnect washer jet tube from wiper motor.
6. Remove 3 bolts and remove wiper motor from tailgate.

Refit

1. Fit wiper motor to tailgate and tighten bolts to 8 Nm.
2. Connect multiplug to wiper motor.
3. Connect washer jet tube to wiper motor.
4. Fit rubber seal and then flat washer. Tighten nut to 2 Nm.
5. Fit nut cover.
6. Fit rear screen wiper arm. See this section.
7. Fit tailgate trim casing. See BODY, Interior trim components.
