WINDSCREEN WIPER LINKAGE

Service repair no - 84.15.26

Remove

  1. Remove air intake plenum. See HEATING & VENTILATION, Repairs.

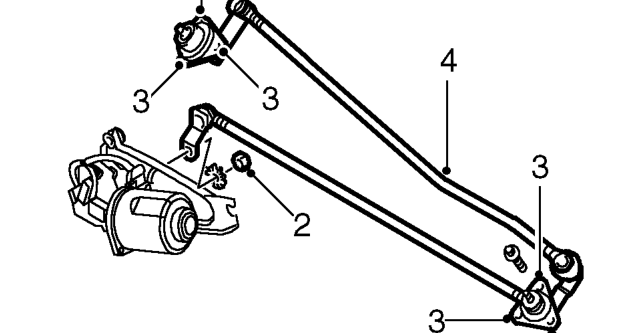

Windscreen wiper linkage – Remove air intake plenum. See HEATING & VENTILATION, Repairs.
  1. Remove nut securing wiper linkage to wiper motor.
  2. Remove 6 bolts securing wiper linkage to bulkhead.
  3. Withdraw wiper linkage from body.

Refit

  1. Position wiper linkage in body.
  2. Fit bolts securing wiper linkage to scuttle and tighten to 10 Nm.
  3. Fit nut securing linkage to wiper motor and tighten to 10 Nm.
  4. Fit air intake plenum. See HEATING & VENTILATION, Repairs.

WINDSCREEN WASHER AND WIPER SWITCH

Service repair no - 84.15.34

Remove

  1. Remove steering column switch pack. See ELECTRICAL, Repairs.

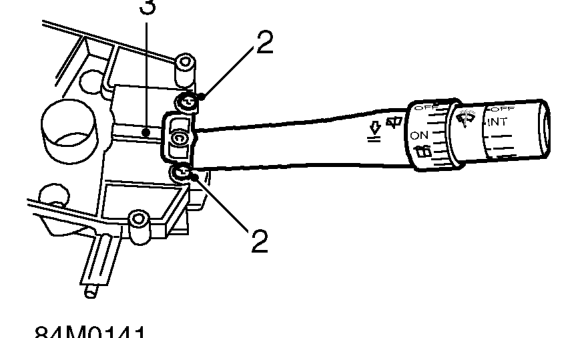

Windscreen washer and wiper switch – Remove steering column switch pack. See ELECTRICAL, Repairs.
  1. Remove 2 screws securing washer and wiper switch to switch pack.
  2. Depress retaining tag and remove washer and wiper switch assembly.

Refit

  1. Fit washer and wiper switch assembly and secure with screws.
  2. Fit steering column switch pack. See ELECTRICAL, Repairs.
