Air intake plenum

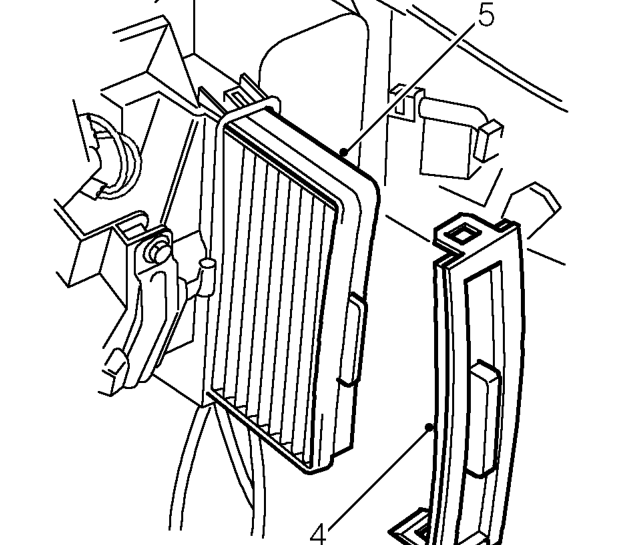

4. Release 2 clips and remove cover from heater housing.
5. Remove and discard intake air filter.

Refit

1. Fit new intake air filter to heater housing. Ensure arrow indicating direction of air flow is facing the correct way.
2. Clean intake air filter cover and fit to heater housing.
3. Fit glove box support bar to fascia and secure with screws.
4. Fit glove box. See BODY, Interior trim components.

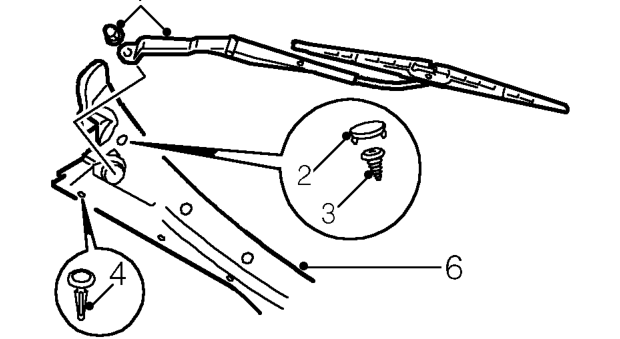

AIR INTAKE PLENUM

Service repair no - 80.15.62

Remove

1. Remove wiper arms. See WIPERS & WASHERS, Repairs.
2. Remove 7 screw covers and screws along upper edge of plenum.
3. Release 8 studs securing lower edge of plenum to body.
4. Release plenum from bonnet hinges and ’A’ post finishers.
5. Remove air intake plenum.

Refit

1. Fit air intake plenum.
2. Fit trim clips securing lower edge of plenum to body.
3. Fit and tighten screws securing upper edge of plenum to body.
4. Fit screw covers along upper edge of plenum.
5. Fit wiper arms. See WIPERS & WASHERS, Repairs.
