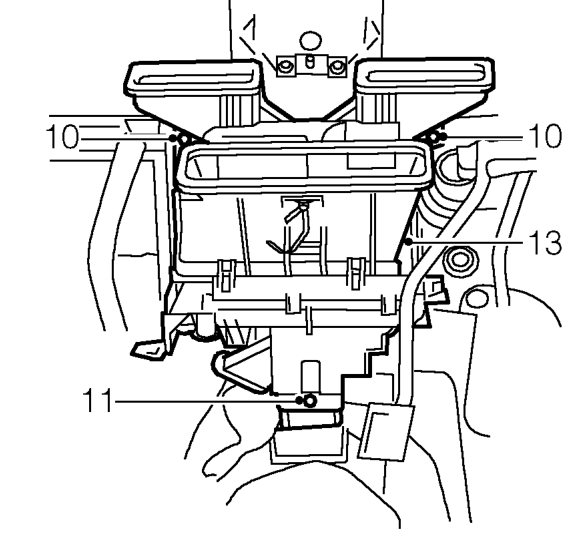

Heater matrix

10. Remove nuts securing heater to bulkhead.
11. Remove trim stud securing heater to centre console duct.
12. Release duct from heater.
13. Remove heater from vehicle.

CAUTION: Be careful not to allow any coolant in the heater matrix to spill into the interior of the vehicle.

Refit

1. Position heater to vehicle.
2. Fit nuts securing heater to bulkhead and tighten to 22 Nm.
3. Position duct to heater and secure with trim stud.
4. Fit heater duct between blower assembly and heater and secure with screws.
5. Secure harness to heater.
6. Fit fascia. See BODY, Interior trim components.
7. Fit nut securing heater to bulkhead and tighten to 22 Nm.
8. Fit coolant hoses to heater pipes and secure with clips.
9. Top-up cooling system. See MAINTENANCE.
10. Connect battery earth lead.

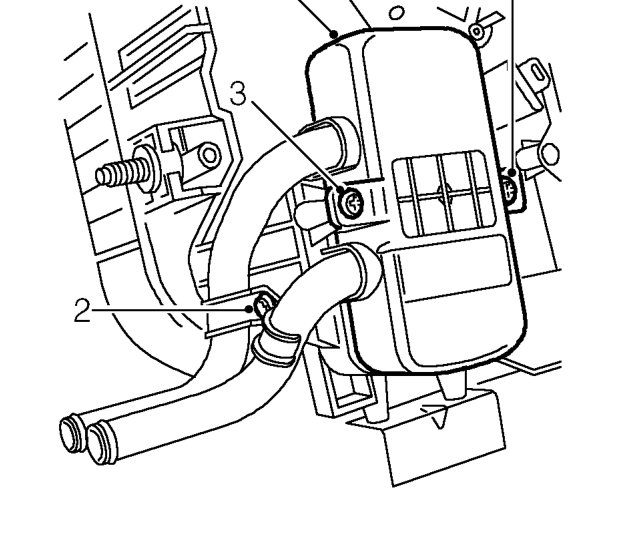

HEATER MATRIX

Service repair no - 80.20.29

Remove

1. Remove heater. See this section.

2. Remove screw securing heater pipe bracket to heater and collect bracket.
3. Remove 2 screws securing matrix cover to heater.
4. Withdraw heater matrix from heater.

Refit

1. Fit matrix to heater.
2. Position cover to matrix and secure with screws.
3. Fit bracket to heater pipes and secure with screw.
4. Fit heater. See this section.
