Heating & ventilationResistor unit · page 1 of 4

RESISTOR UNIT

Service repair no - 80.20.17

Remove

  1. Remove glove box. See BODY, Interior trim components.

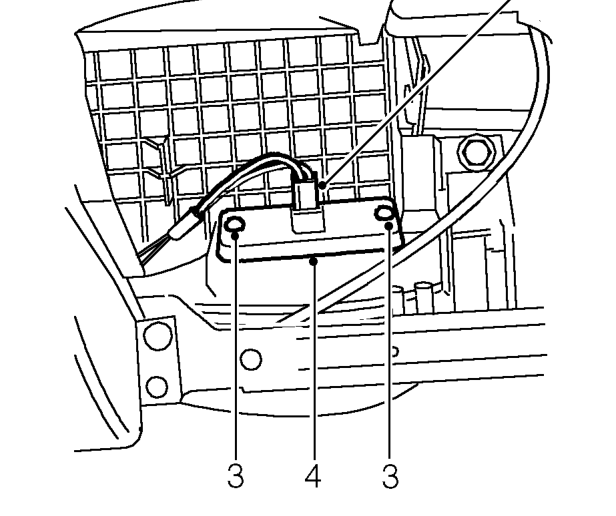

Resistor unit – Remove glove box. See BODY, Interior trim components.
  1. Disconnect multiplug from resistor unit.
  2. Remove 2 screws securing resistor unit to heater.
  3. Remove resistor unit.

Refit

  1. Fit resistor unit to heater and secure with screws.
  2. Connect multiplug to resistor unit.
  3. Fit glove box. See BODY, Interior trim components.

HEATER CONTROLS

Service repair no - 80.10.02

Remove

  1. Remove front console. See BODY, Interior trim components.
  2. Remove glove box. See BODY, Interior trim components.
Heater controls – Remove glove box. See BODY, Interior trim components.

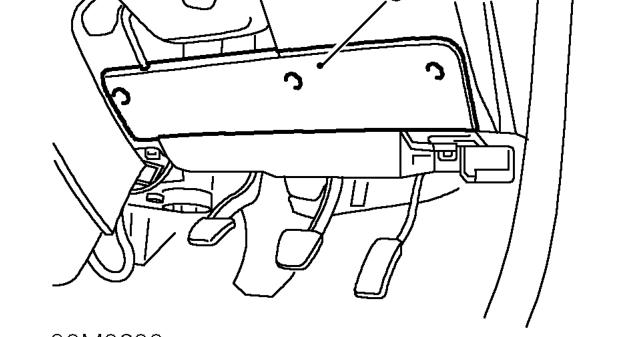

  1. Release 3 turnbuckles and remove fascia lower cover.
Heater controls – Release 3 turnbuckles and remove fascia lower cover.

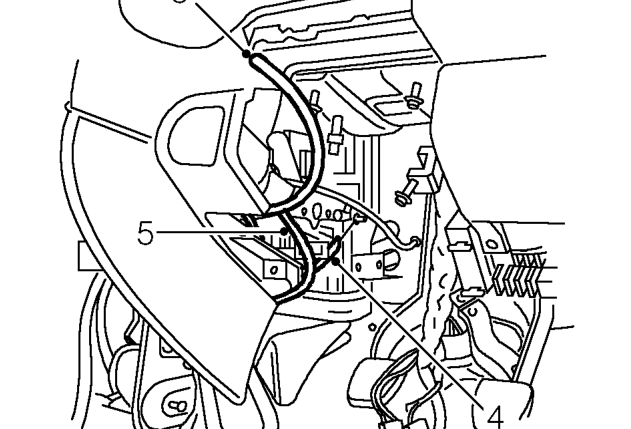

  1. Disconnect air distribution control cable from heater unit.
  2. Disconnect heater control cable from heater unit.
  3. Disconnect fresh air vent control cable from heater unit.
