Heating & ventilationResistor unit · page 3 of 4
- Remove heater controls from fascia. Do not carry out further dismantling if component is removed for access only.

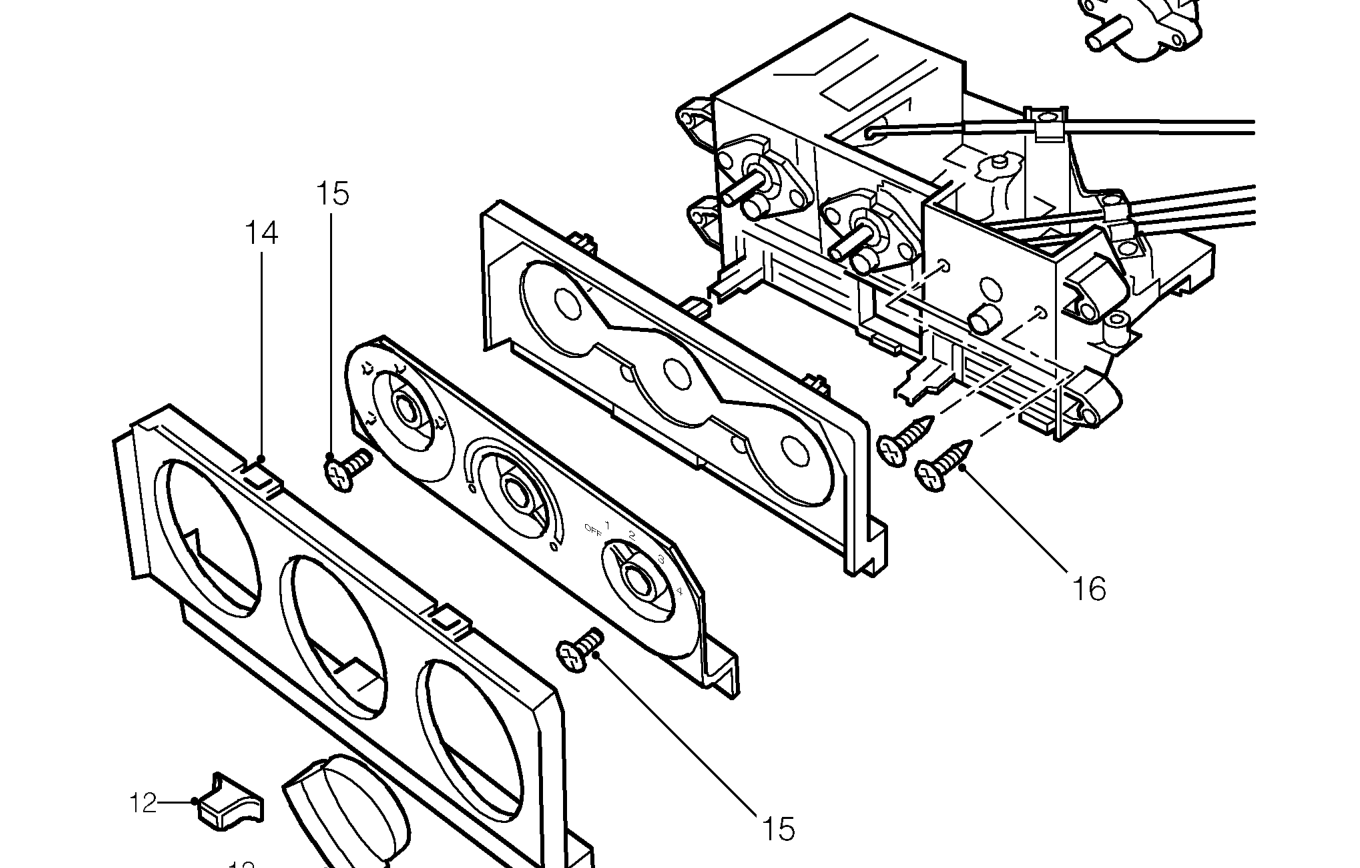

- Carefully prize knobs from heater controls.
- Release 6 clips securing trim finisher to heater controls.
- Remove 2 screws securing bezel to heater controls and remove.
- Remove 2 screws securing heater fan switch and remove.

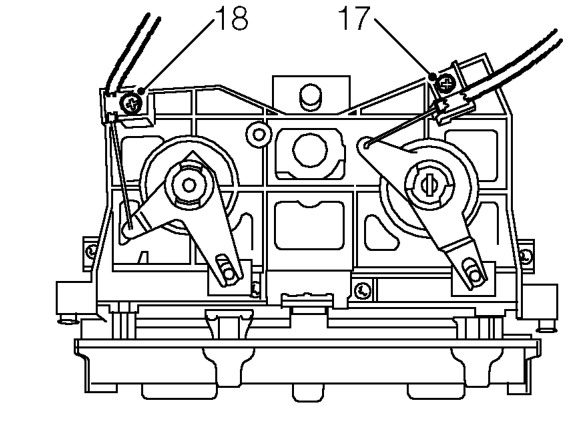

- Remove screw securing air recirculation cable and release from heater controls.
- Remove screw securing air distribtuion cable and release from heater controls.
